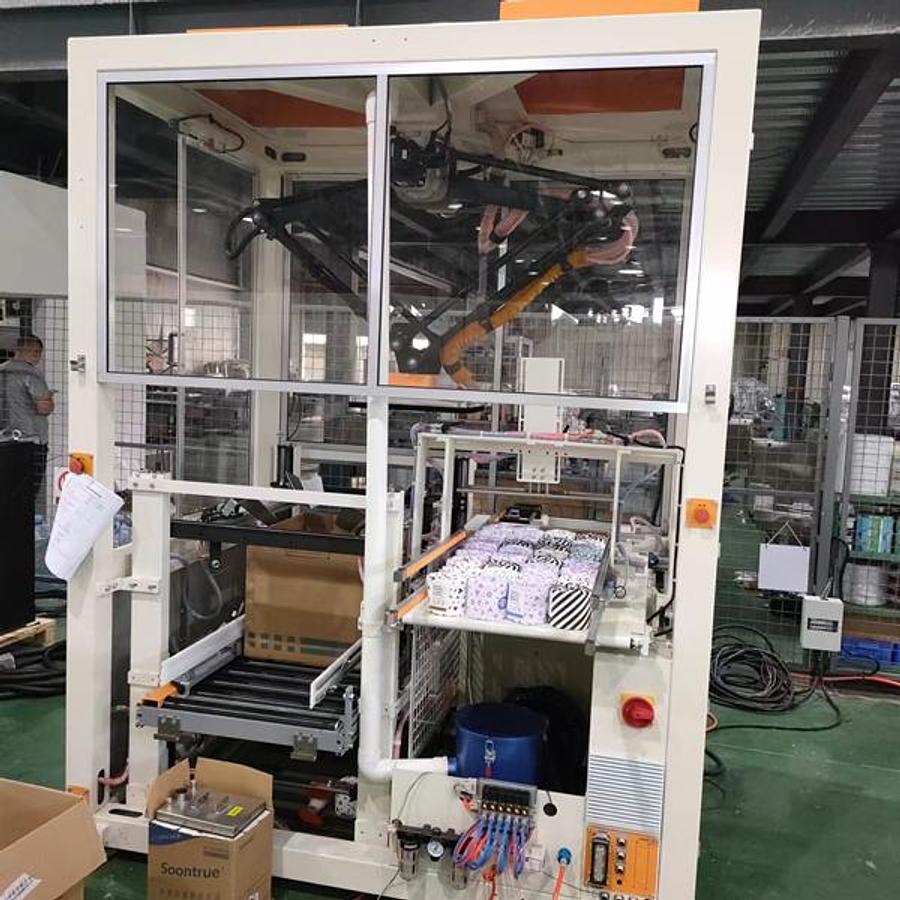

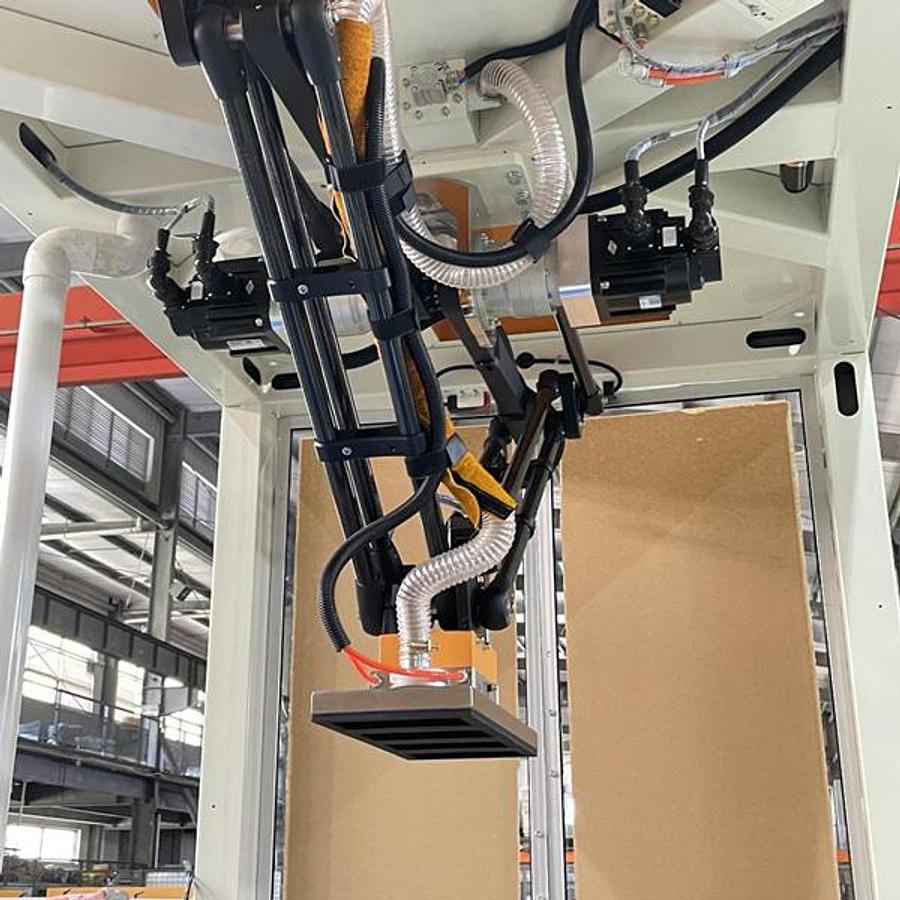

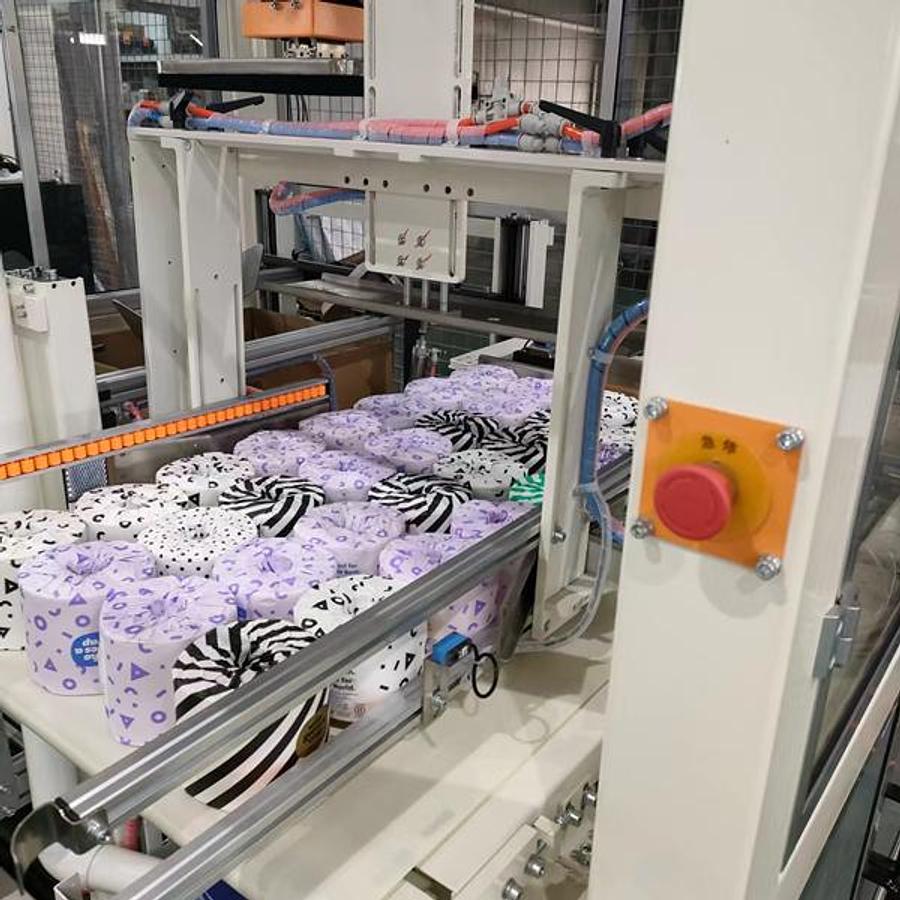

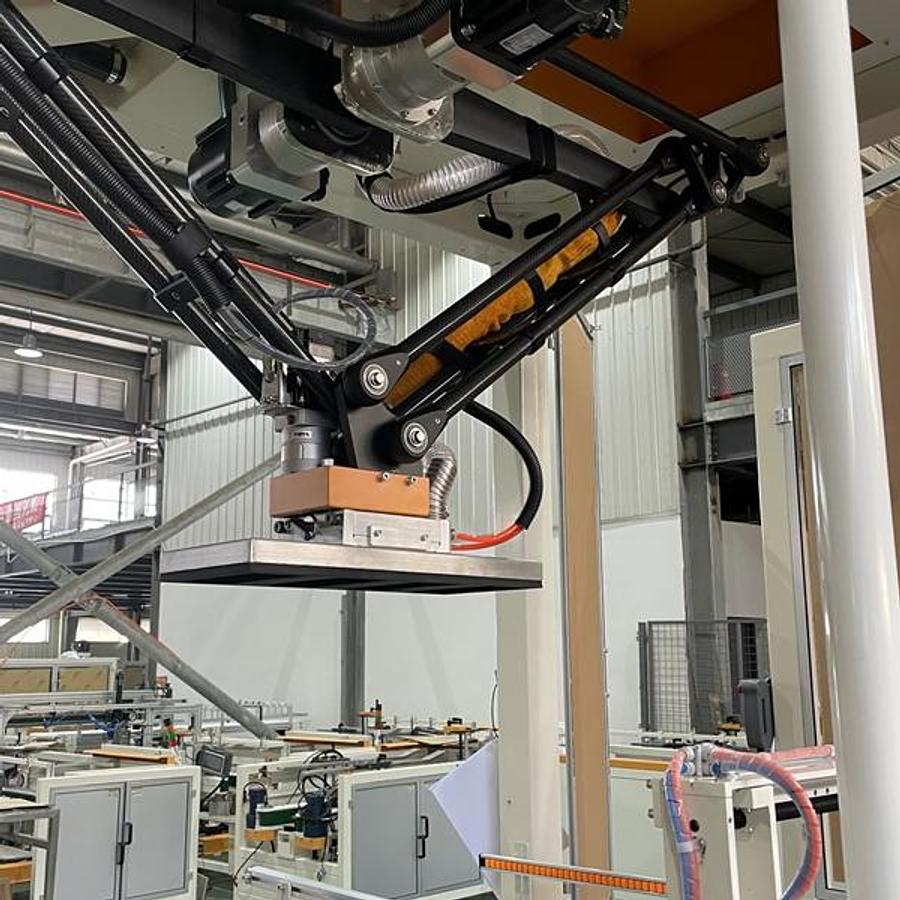

Automatic Case Packer Machine For Facial Tissue ZX660B

Machine Overview

The ZX660B is an automatic case packing machine for tissue products. It integrates case erecting, case packing, and case sealing in one machine. Depending on production needs, it can operate as:

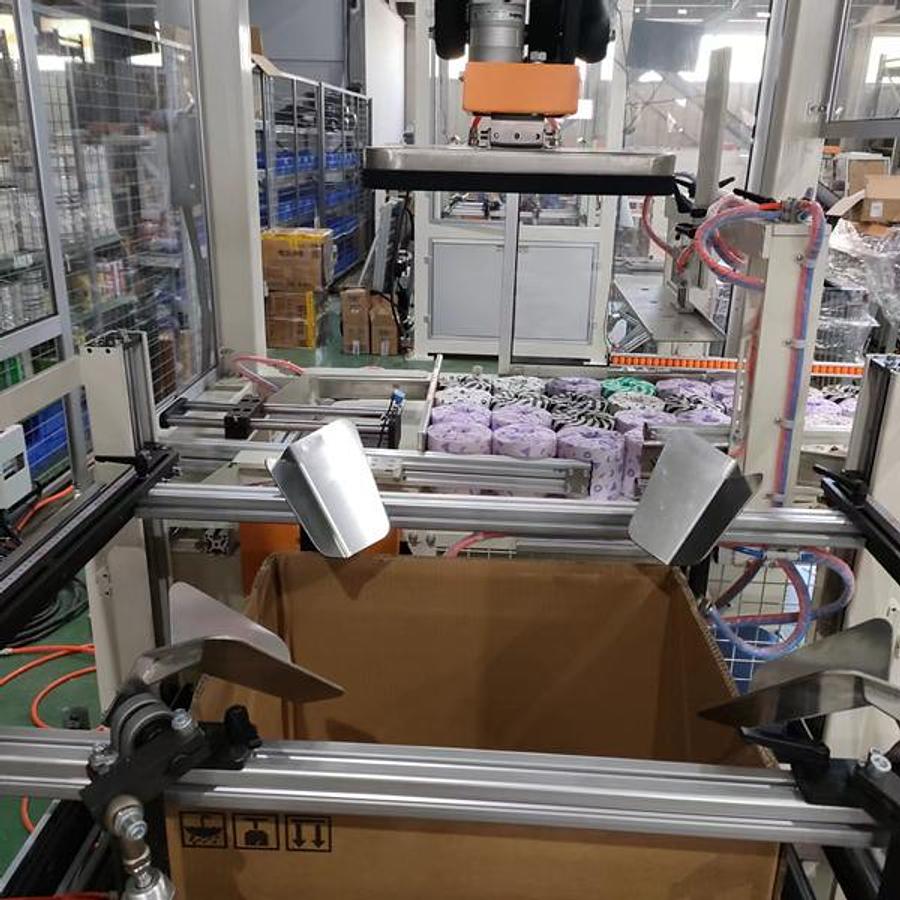

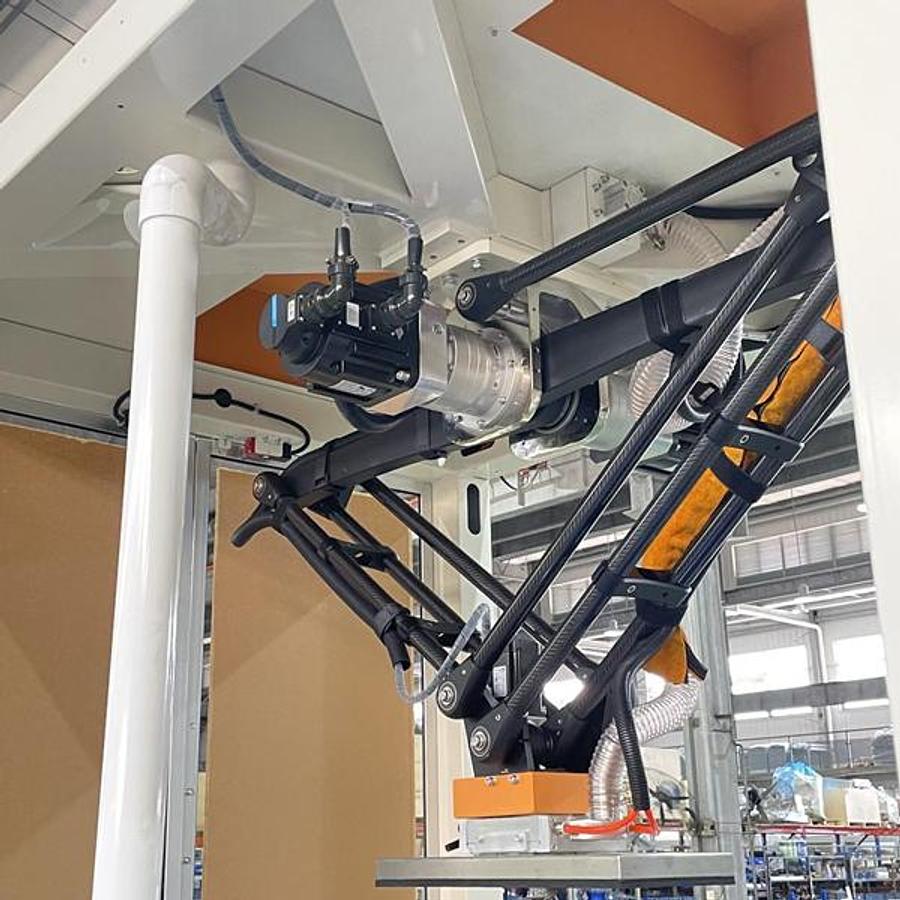

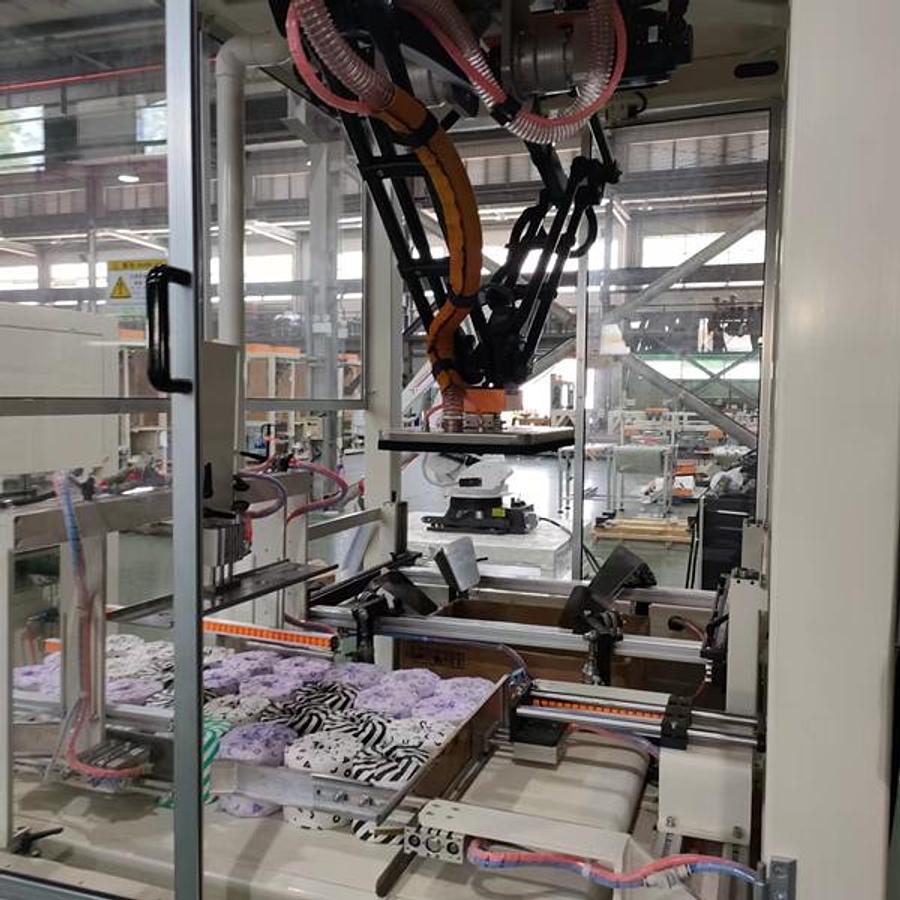

• Robot case loading – flexible and programmable for different products and packing formats
• Mechanical packaging machine – ideal for standardized packing lines

This machine is a key component of an automated packing line, improving flexibility, stability, and reliability.

Technical Specifications

Carton Packing Speed:

• 7–12 cartons/min (depends on product and packing type)

Carton Size Range:

• Length: 270–650 mm
• Width: 180–500 mm
• Height: 150–450 mm

Sealing Tape:

• 48 mm or 70 mm

Machine Dimensions & Weight:

• Overall dimensions (L × W × H, including arranging conveyor): 8000 × 3200 × 2600 mm
• Weight: ~3,000 kg (including conveyor)

Power & Air Requirements:

• Total power (including conveyor): 15 kW
• Air supply: 0.5–0.7 MPa
• Air consumption: 200 L/min (customer-supplied)

Noise Level:

• ~80 dB

Machine Color:

• RAL1013

Carton Storage Capacity:

• 80–90 cartons (3 layers stacked)

Key Features

• Integrates case erecting, packing, and sealing in one system
• Supports robotic or mechanical loading, enhancing flexibility
• Adjustable for various carton sizes and packing quantities

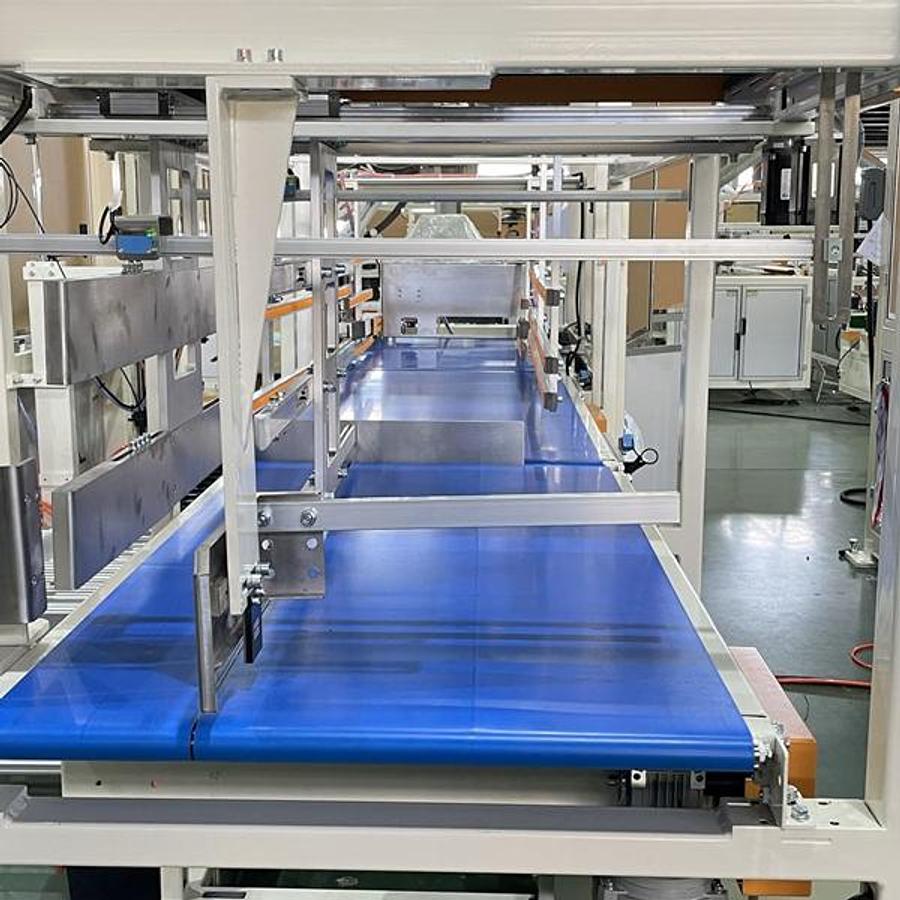

• Efficient workflow with integrated arranging conveyor
• Improves overall packing line efficiency, stability, and reliability
