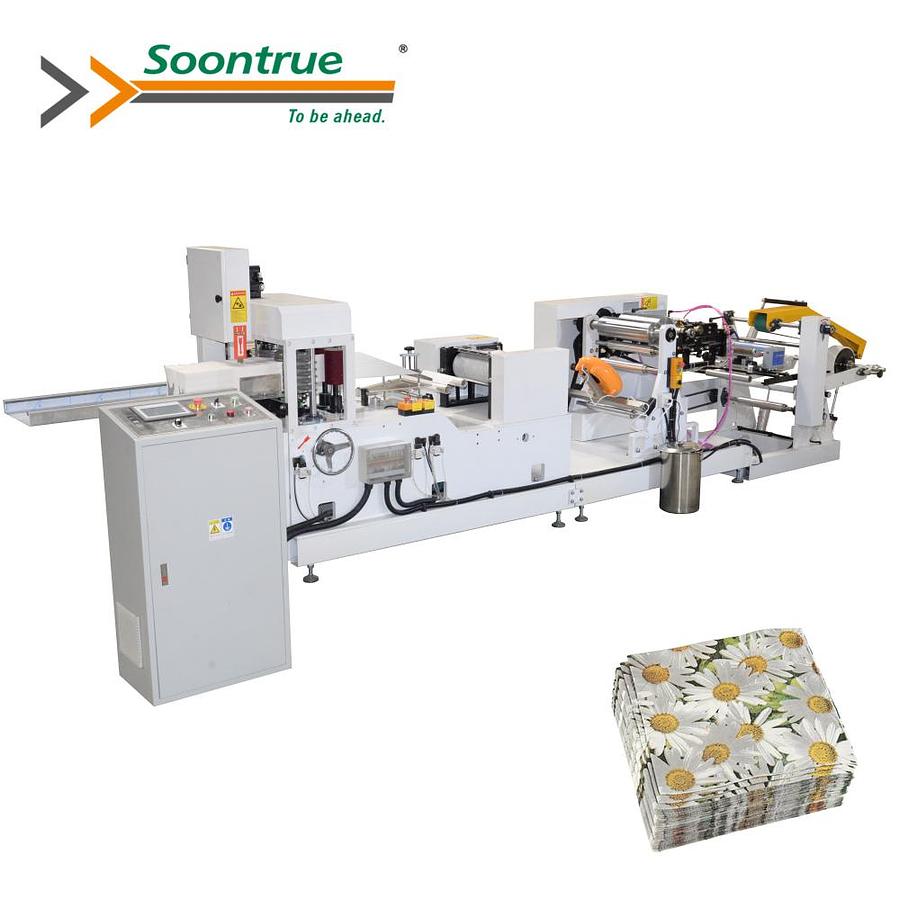

Tissue Paper Napkin Making Machine | Soontrue Tissue Machine

Machine Overview

This automatic high-speed napkin machine processes napkin paper from jumbo rolls through a fully integrated system that performs:

1. Embossing
2. Folding (mechanical and tri-angle 1/4 folding)
3. Pneumatic counting
4. Cutting

The entire process is completed in one pass by a single machine, with options for different embossing patterns and color printing.

Jumbo Roll Specifications

• Paper type & weight:
• 14–17 g/m², double layer napkin paper
• 19–23 g/m², single layer napkin paper
• Width: 250–340 mm
• Expansion ratio: 10–35%
• Maximum diameter: 1200 mm
• Inner core diameter: 3 inches (76.2 mm)

Expanded Napkin Size

• Standard size: 300 × 300 mm

Machine Speed

• Mechanical speed: 130–160 m/min (~550 pcs/min)
• Manufacturing output: 500–550 pcs/min

Machine Structure & Transmission

• Structure type: Connected structure
• Transmission type: Gear, psycho-belt, and flat belt transmission
• Roll-back structure: Air upper press and belt roll-sending

Folding & Forming

• Forming type: Mechanical folding, tri-angle 1/4 folding
• Control type: Inverter control with speed adjustment and jog for paper-sending and electric counting

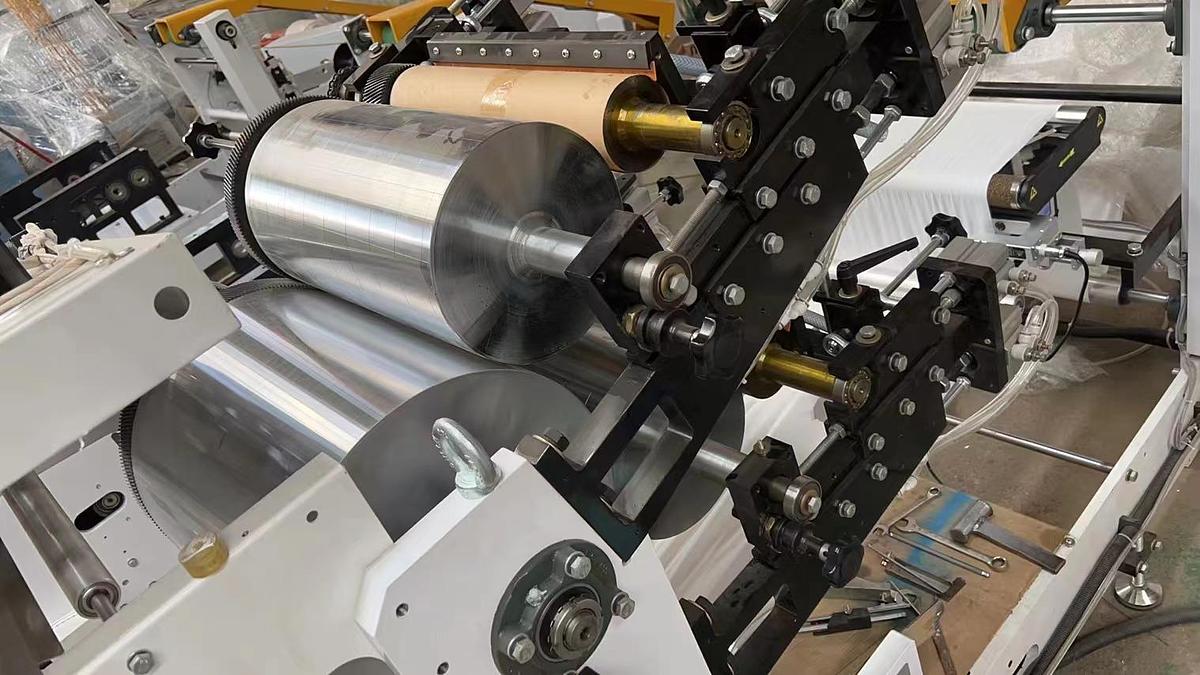

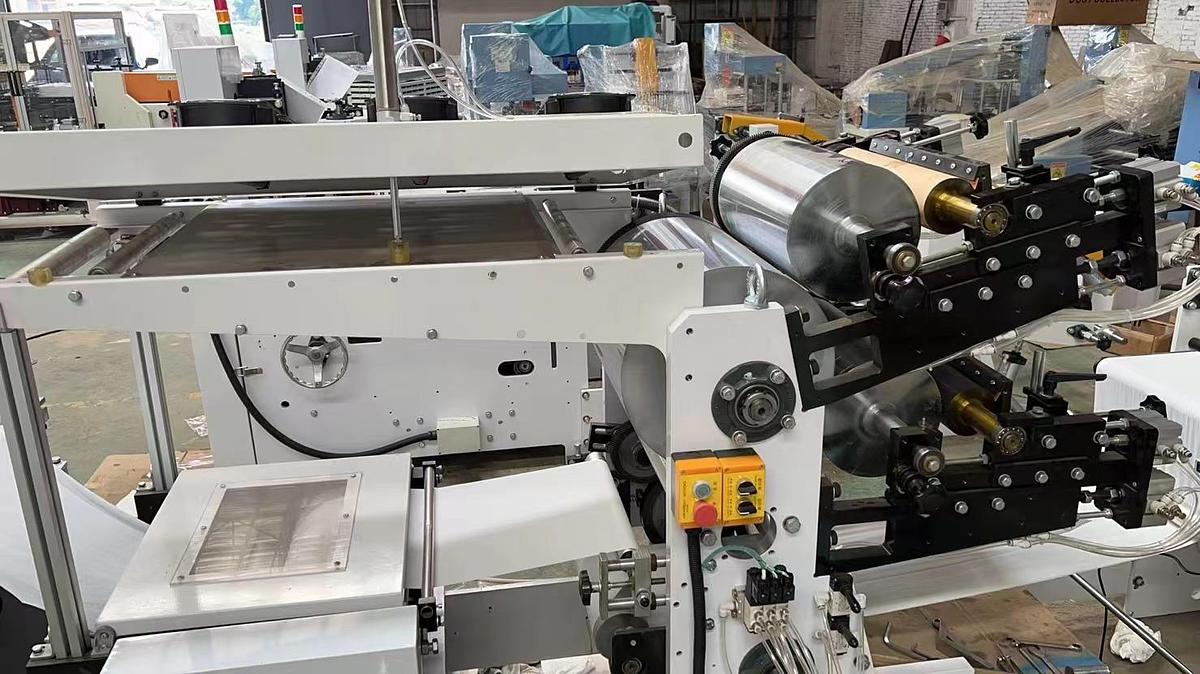

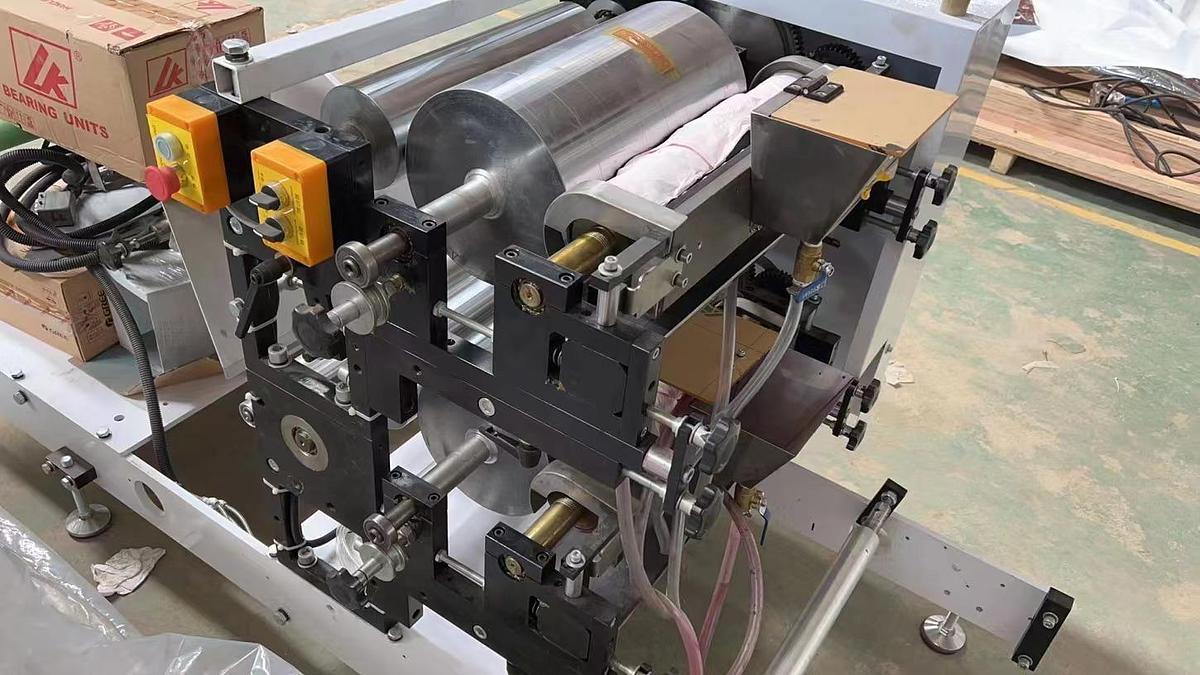

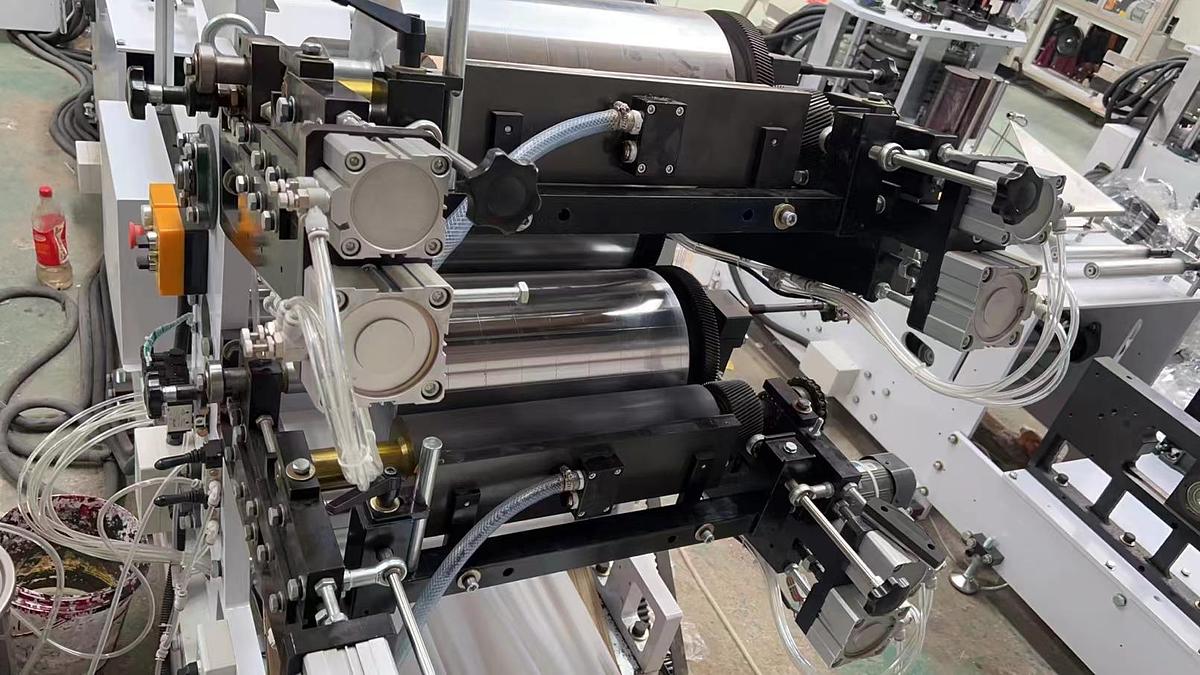

• Embossing type: Steel-to-wool roller embossing

Printing & Power

• Printing type: Flexible printing
• Motor power: 2.2 kW
• Air press requirement: ≥ 0.5 MPa
