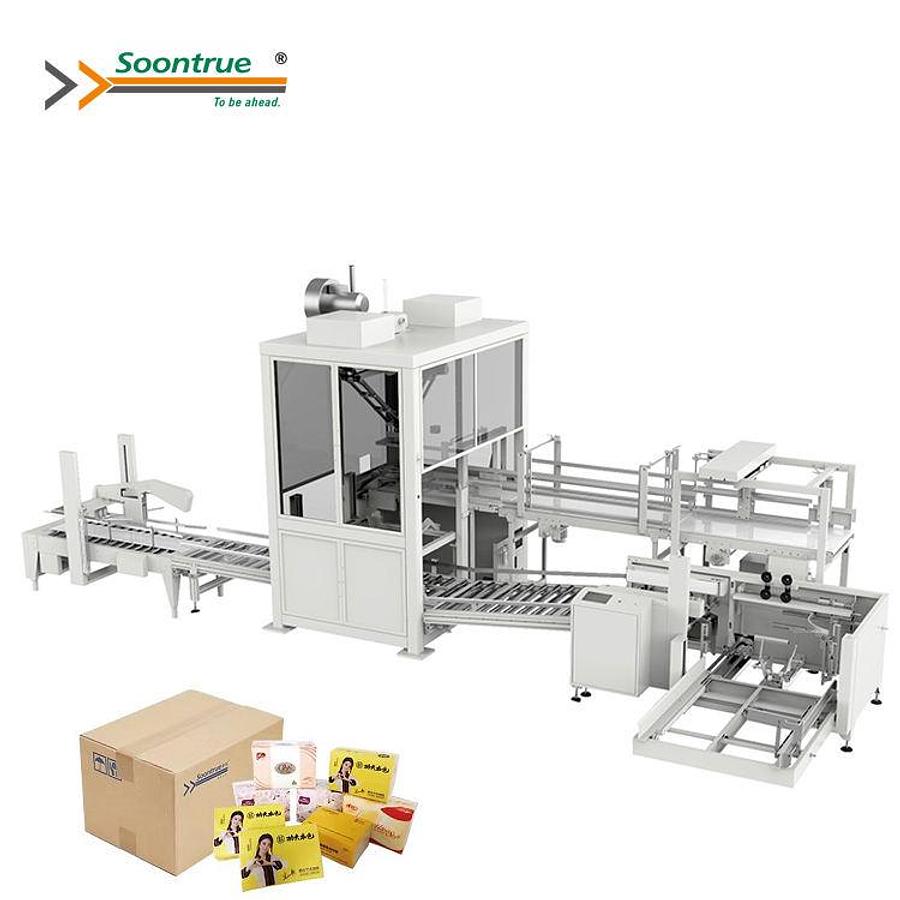

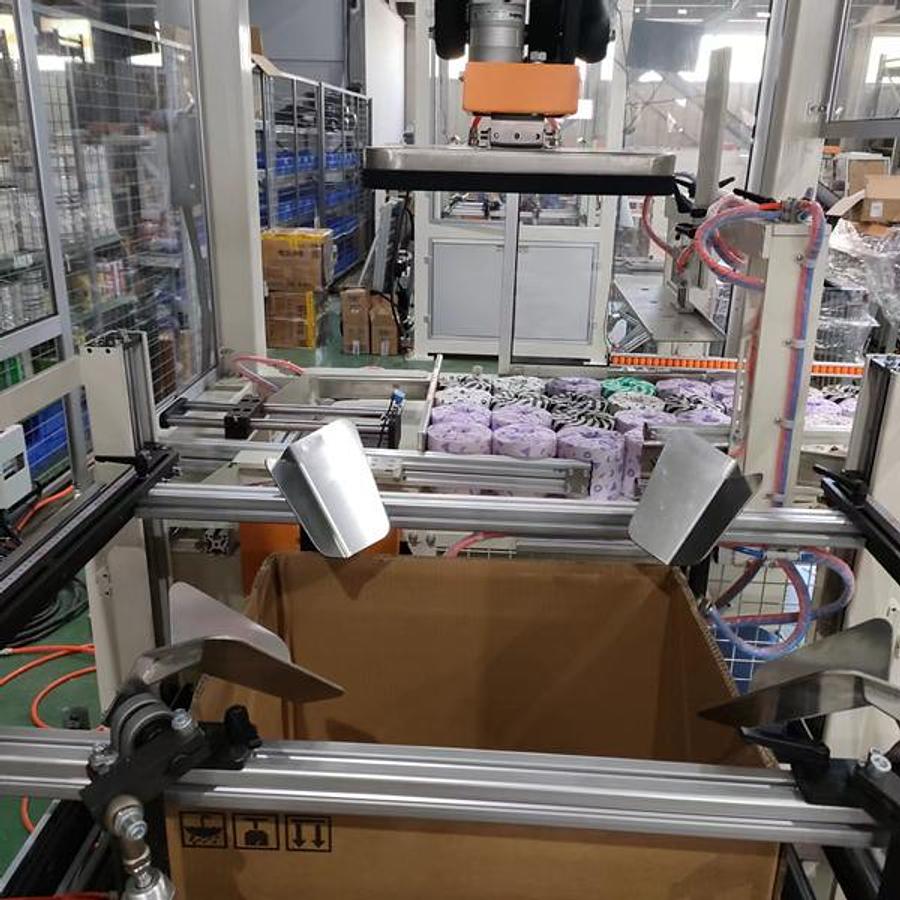

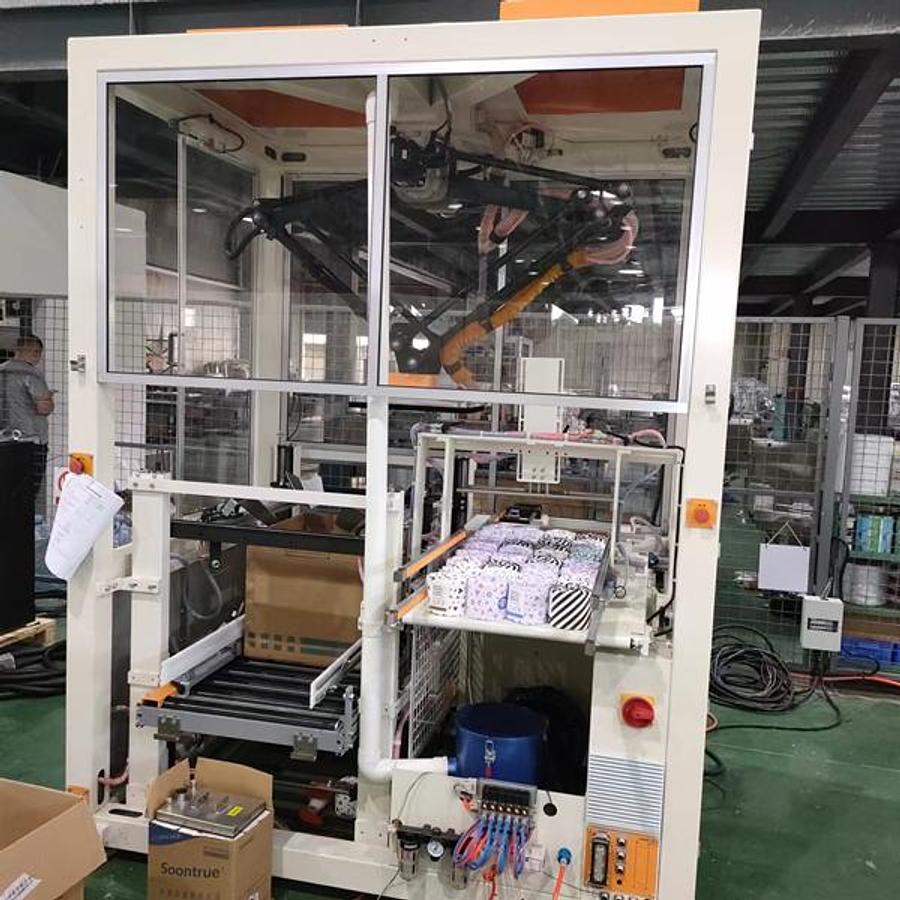

Automatic Case Packer Machine For Facial Tissue ZX660B

Machine Overview

The ZX660B is an automatic case packing machine designed for tissue paper products. It performs case erecting, case packing, and case sealing in one integrated system. It can be configured as:

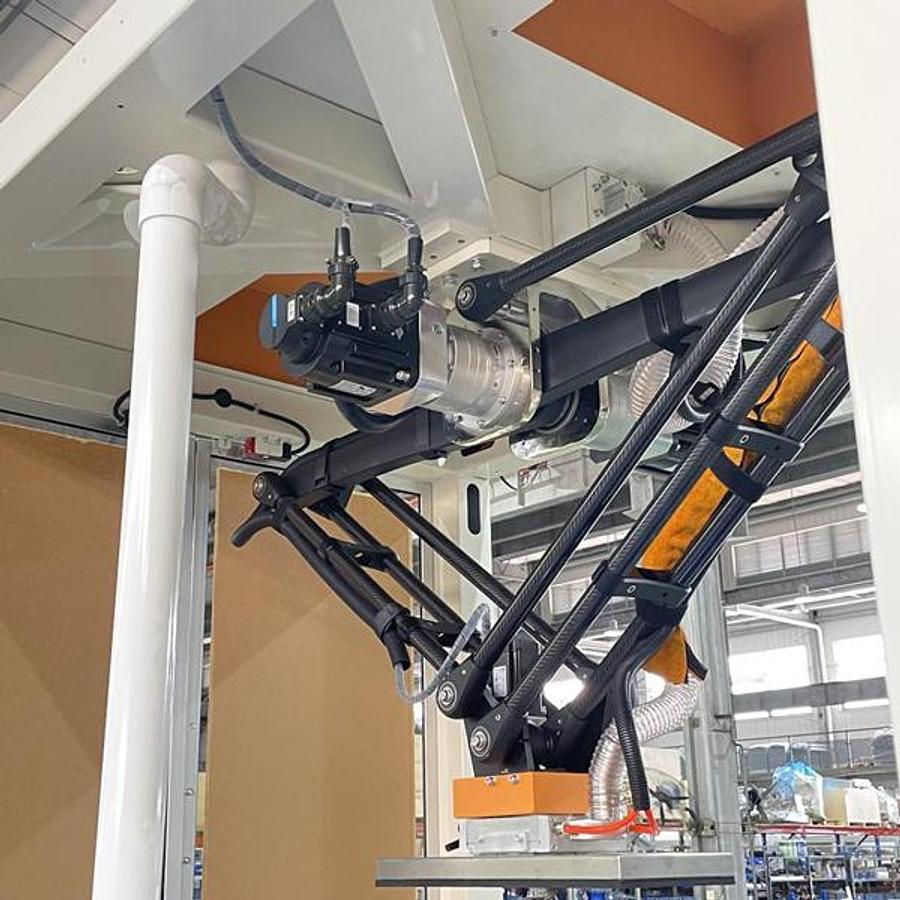

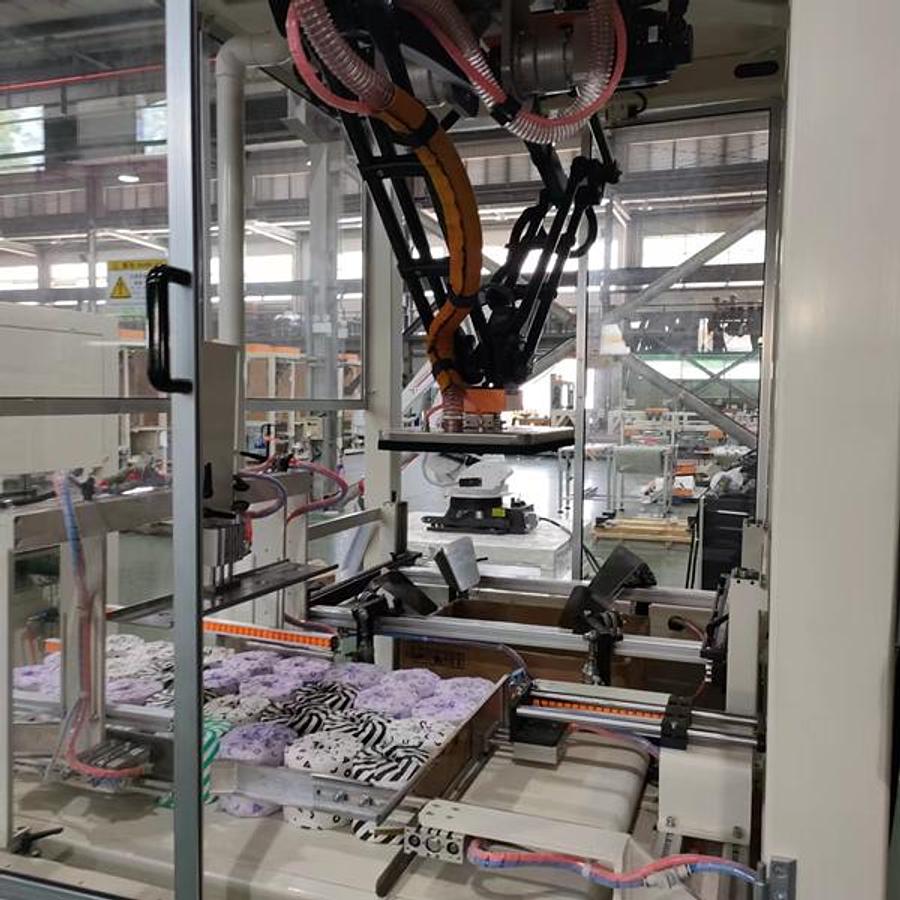

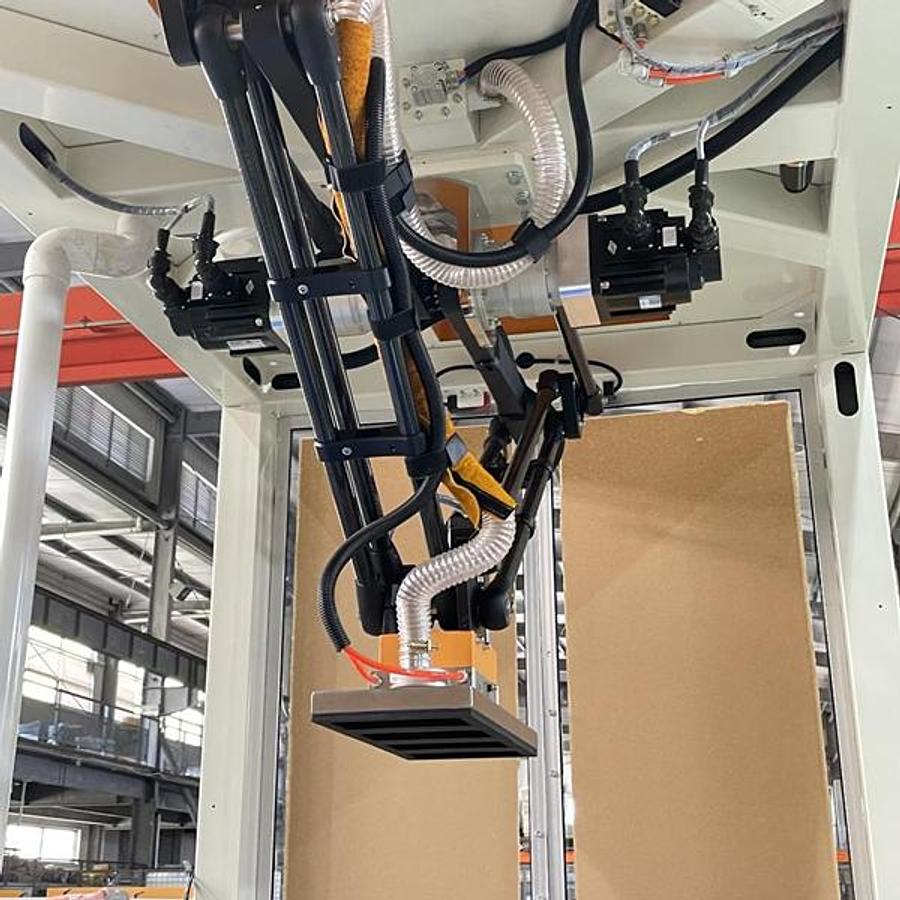

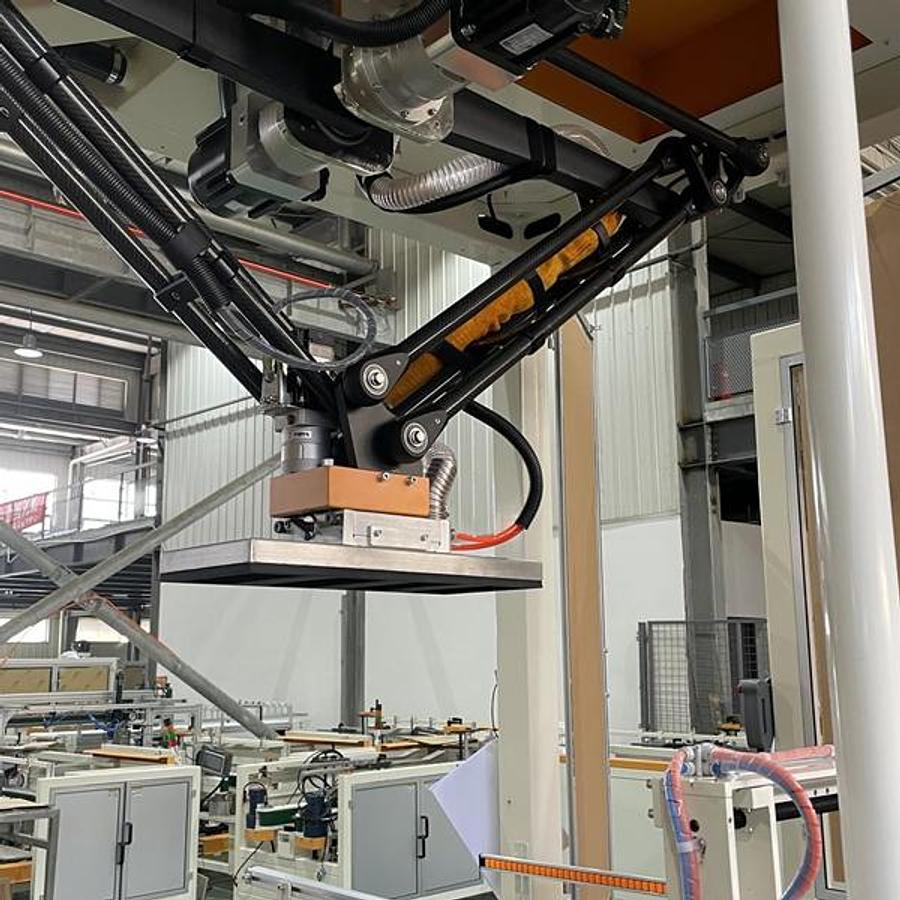

• Robot case loading – flexible, stable, and reliable for varying product types and packaging quantities.
• Mechanical packaging machine – suitable for standardized packing lines.

It is a key component of an automatic packing line and improves production efficiency and consistency.

Technical Specifications

Carton Packing Speed:

• 7–12 cartons/min (depending on product type and packing method)

Carton Size Range:

• Length: 270–650 mm
• Width: 180–500 mm
• Height: 150–450 mm

Sealing Tape:

• 48 mm or 70 mm

Power Requirements:

• Total power (including conveyor): 15 kW
• Air supply: 0.5–0.7 MPa
• Air consumption: 200 L/min (customer-supplied)

Machine Dimensions & Weight:

• Overall dimensions (L×W×H, including conveyor): 8000 × 3200 × 2600 mm
• Weight: ~3,000 kg (including conveyor)

Noise Level:

• ~80 dB

Machine Color:

• RAL1013

Carton Storage:

• 80–90 cartons (3 layers stacked)

Key Features

• Integrates case erecting, packing, and sealing in one machine.
• Supports both robotic and mechanical loading, providing flexibility for different production needs.
• Adjustable for various carton sizes and packaging quantities.
• Enhances packing line efficiency, stability, and reliability.
• Compact layout with integrated conveyor for smooth workflow.
