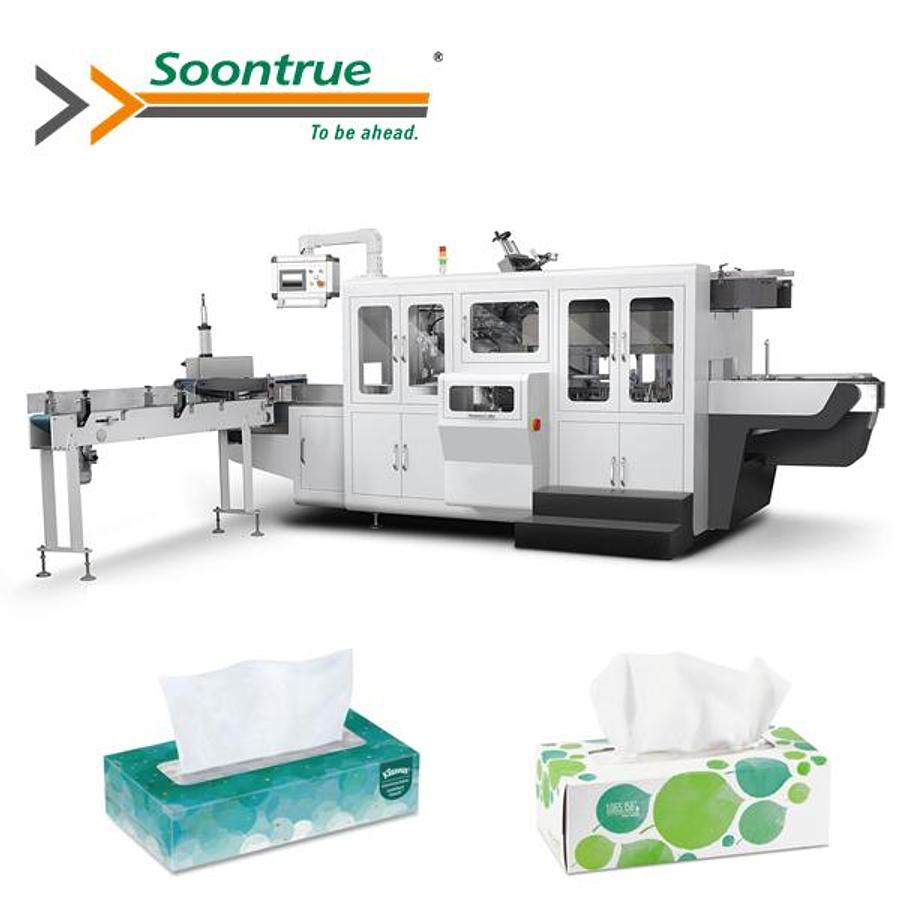

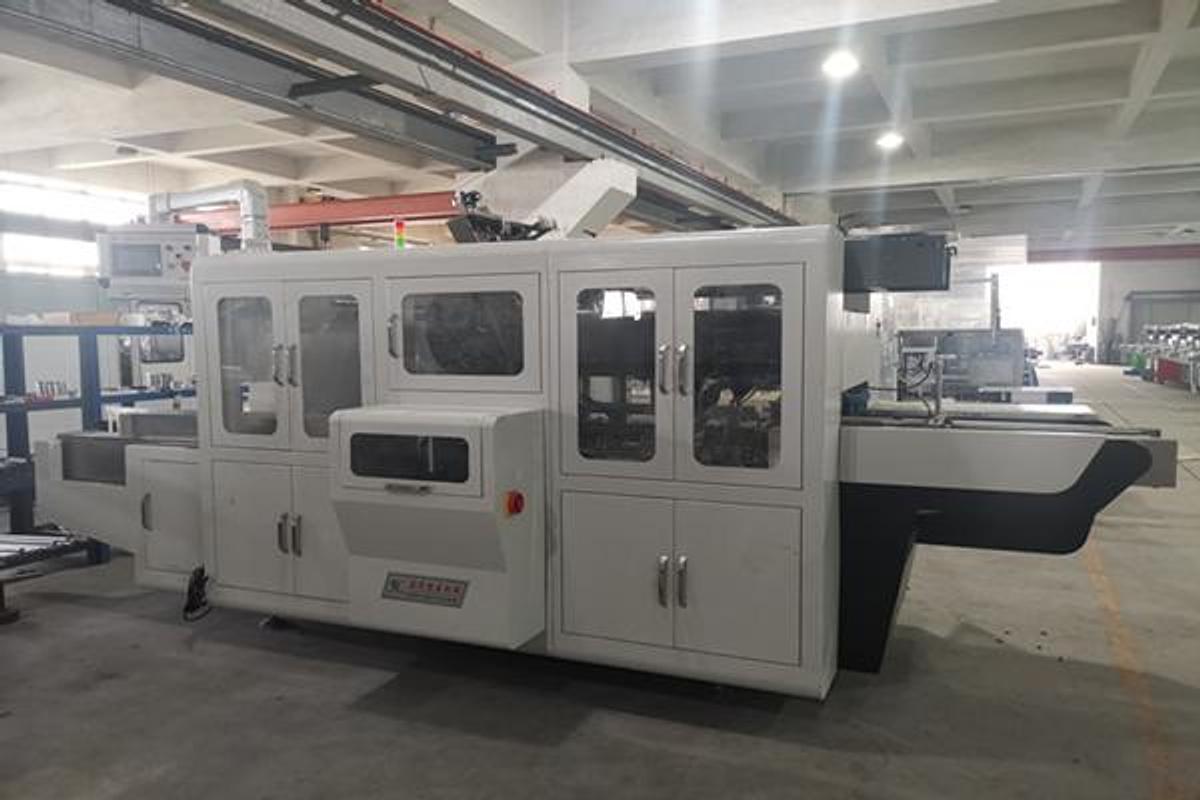

Fully Automatic Box Tissue Packing Machine ZB500

Machine Overview

The ZB-500 is a high-speed, fully automatic machine designed for packing facial tissues and napkins into boxes. Its workflow includes:

1. Feeding tissues
2. Opening boxes
3. Placing tissues into boxes
4. Marking batch numbers
5. Dispensing hot melt adhesive
6. Sealing boxes
7. Outputting packaged boxes automatically

It is ideal for efficient, high-volume box packaging.

Technical Specifications

Carton Paper:

• 300–400 g/m²

Packing Size:

• Length: 100–240 mm
• Width: 100–120 mm
• Height: 20–90 mm

Packing Speed:

• 30–150 boxes per minute (depending on box size)

Power Requirements:

• Heating power: 4 kW
• Motor power: 5.5 kW
• Total power: 10 kW
• Power supply: 380V 50/60Hz, 3-phase, 4-wire

Air Supply:

• Pressure: 0.5–0.8 MPa
• Air consumption: 120–160 L/min

Machine Dimensions & Weight:

• Overall dimensions (L × W × H): 4570 × 1700 × 1800 mm
• Weight: 2,500 kg

Noise Level:

• ≤80 dB

Key Features

• High-speed box packing, up to 150 boxes/min
• Automatic tissue feeding and box handling
• Batch marking and hot melt sealing included
• Compact design suitable for factory floors
• Reliable, user-friendly operation
