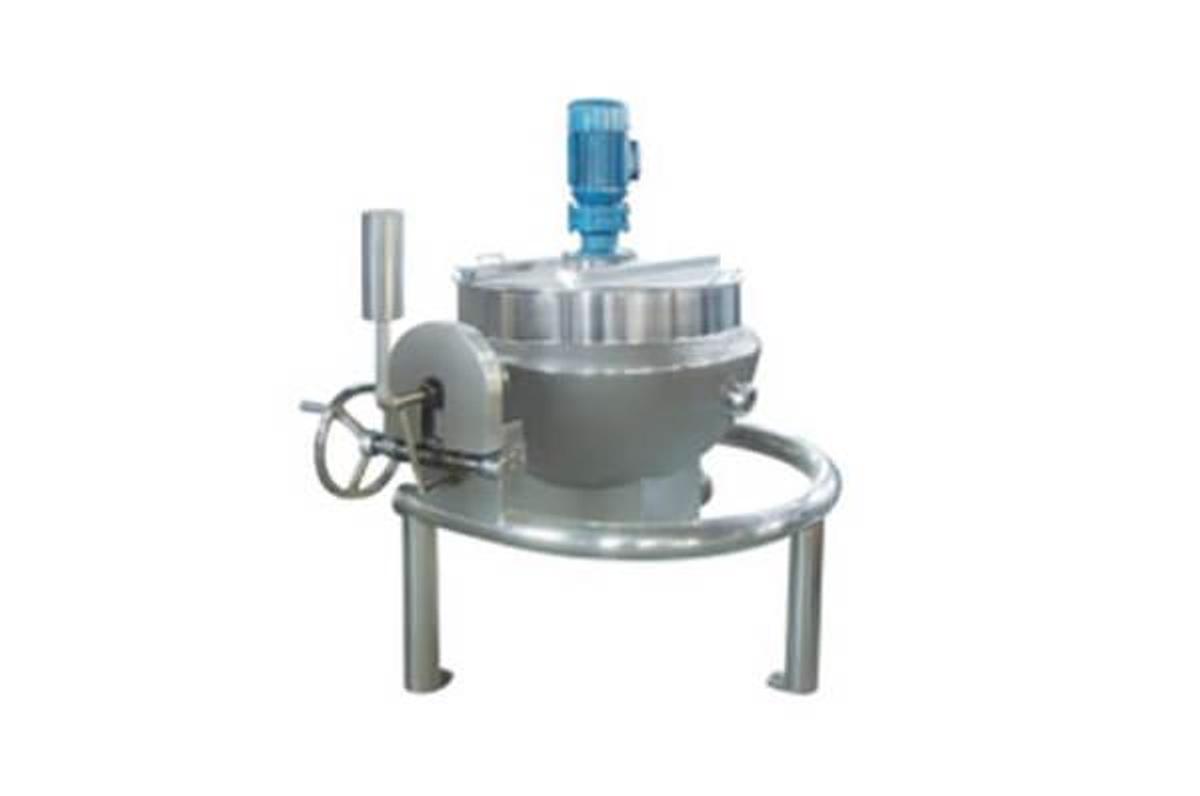

Electric Heat Transfer Oil Syrup Pot

Electric Heating Mixing & Cooking Pot (200L / 300L)

Product Description

This Electric Heating Mixing & Cooking Pot is a versatile and efficient thermal processing unit, designed for precision heating, cooking, and blending of a wide range of food and non-food materials. It uses electric heating technology, offering a large heating area, high thermal efficiency, uniform temperature distribution, and short heating time. The temperature is easy to control, making it suitable for applications that require consistency and heat sensitivity.

The pot is equipped with a side and bottom scraping stirrer to ensure even mixing without dead zones. The non-stick upper pot allows for smooth operation and easy cleaning. Constructed from high-grade 304 stainless steel, all parts in contact with the product meet food hygiene standards and comply with accessory requirements.

With an elegant design and compact footprint, the unit is easy to install and operate—perfect for small-to-large scale food and processing facilities.

Scope of Application

This machine is widely used in:

• Food Industry: Candy, pastries, lotus seed paste, bean paste, jams, preserves, meat paste
• Pharmaceutical Industry: Herbal extracts, medicinal pastes
• Daily Chemical Industry: Creams, gels, and other heat-sensitive materials

Key Features

• Electric heating with fast temperature rise and precise control
• High-efficiency mixing with full scraping from bottom and sides
• Uniform heating with no dead angles or product sticking
• Made from food-grade 304 stainless steel for safe, hygienic processing
• Attractive appearance, easy to clean, install, and maintain
• Designed for continuous use in demanding production environments

Technical Specifications (Narrative Form)

The machine is available in 200-liter and 300-liter capacities, depending on production requirements. The inner steel pot is made with a 5 mm thick wall, while the outer shell is 4 mm thick, ensuring thermal insulation and durability.

It operates at a steam pressure of 0.4 MPa, with a maximum heating temperature of 167°C. Stirring is powered at 30 rpm, driven by a 1.5 kW motor, allowing for smooth and even agitation. The pan inner diameter is 800 mm for the 200L model and 900 mm for the 300L model. The total machine weight is approximately 350 kg.
