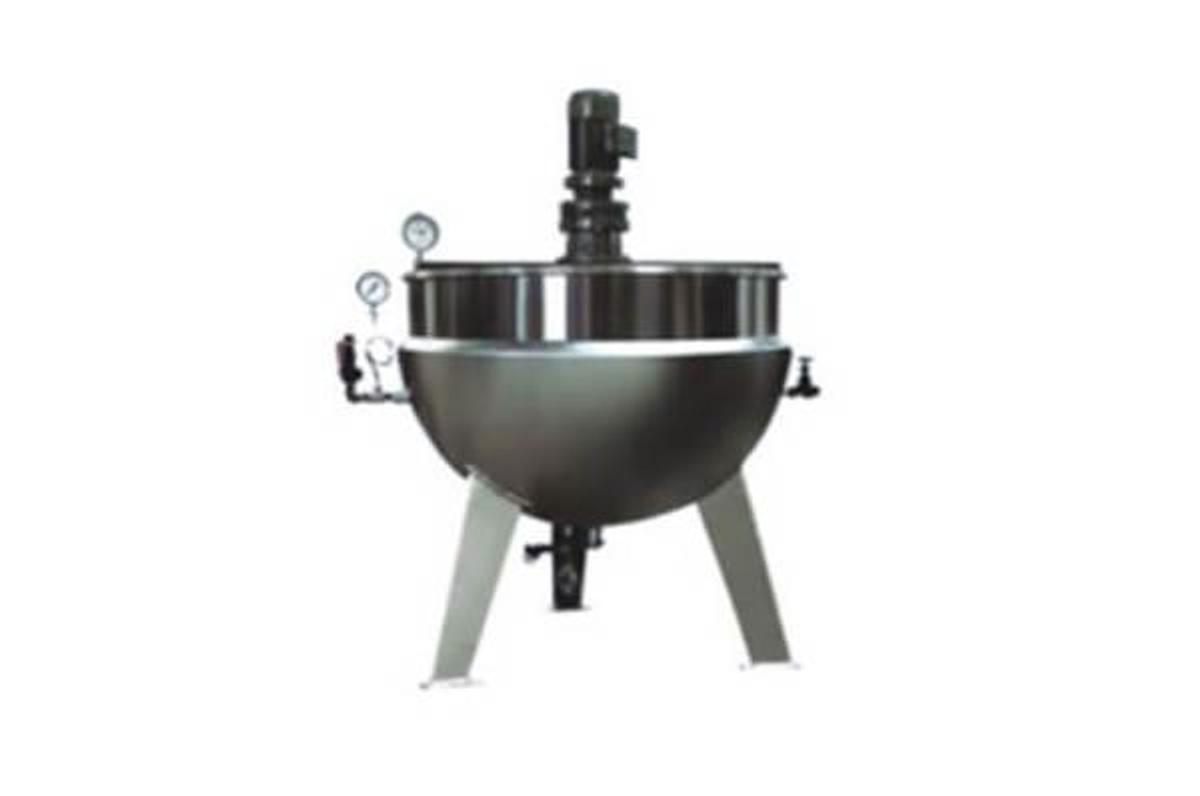

Sandwich Steam Mixing Sugar Pot HTL-T300B

Electric Heating Mixing & Cooking Pot (200L / 300L)

Product Description

This Electric Heating Mixing & Cooking Pot is a high-efficiency thermal processing unit designed for a wide range of applications in the food, pharmaceutical, and daily chemical industries. It features electric heating, providing a large heating area, fast heat-up time, uniform temperature distribution, and precise temperature control, making it an ideal choice for batch cooking, paste making, and ingredient blending.

The pot is engineered with bottom and side scraping agitation, ensuring thorough and even mixing with no dead corners and preventing materials from sticking to the surface. It is built from high-grade 304 stainless steel, compliant with food safety and hygiene standards. Its sleek, easy-to-clean design and compact structure allow for easy installation, operation, and maintenance.

Application Scope

This machine is widely used in:

• Food industry: Candy, pastries, lotus seed paste, bean paste, jam, fruit preserves, meat paste
• Pharmaceutical industry: Herbal pastes, medicinal blends
• Daily chemical industry: Creams, gels, and other formulations requiring thermal mixing

Key Features

• Electric heating system with short heat-up time and high thermal efficiency
• Uniform heating and accurate temperature control for consistent results
• Side and bottom stirring with scraper ensures complete blending and prevents sticking
• Constructed from 304 stainless steel to meet food-grade hygiene standards
• Attractive appearance, simple operation, and reliable performance

Technical Specifications (Narrative Form)

This model is available in 200-liter and 300-liter capacity variants. The inner pan features a thickness of 5 mm, while the outer steel pipe is 4 mm thick, offering durability and optimal thermal insulation. The system operates at a steam pressure of 0.4 MPa and can reach heating temperatures up to 167°C.

Mixing is performed at a stirring speed of 30 rpm, driven by a 1.5 kW motor. The inner pan diameter is 800 mm for the 200L version and 900 mm for the 300L version, and the overall unit weight is approximately 350 kg.
