Bubble Gum Cutting&Packaging Production Line

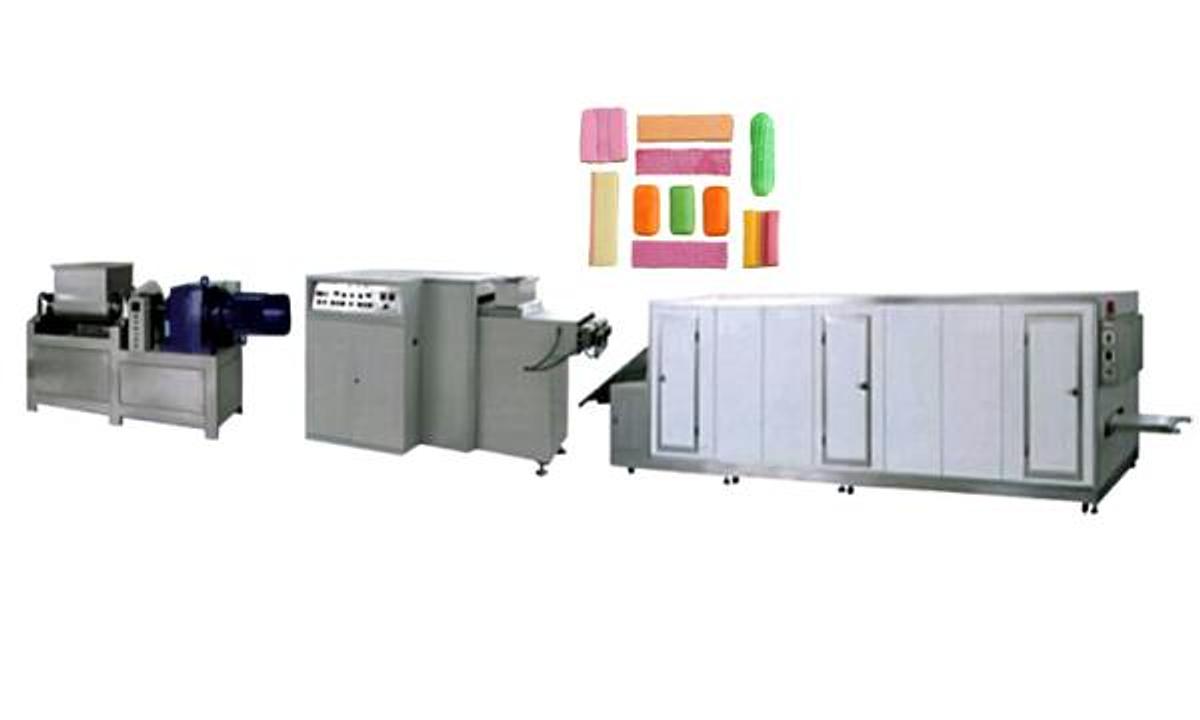

Automatic Two-Color Bubble Gum Production Line

Product Description

This fully automatic production line is a comprehensive solution for the large-scale manufacturing of two-color bubble gum in square, oval, or other custom shapes. Designed with precision engineering and modular functionality, the line integrates mixing, extrusion, shaping, cooling, and packaging into a continuous, highly efficient process.

Ideal for both standard and custom gum products, this line is equipped with advanced machinery that ensures consistent quality, ease of operation, and reliable performance across long production shifts. Its modern design is optimized for hygiene, maintainability, and energy efficiency—making it a top-tier choice for confectionery manufacturers worldwide.

Application Scope

Suitable for producing:

• Square and oval bubble gum
• Dual-color bubble gum products
• Gumballs and custom-shaped chewing gum

Production Process Overview

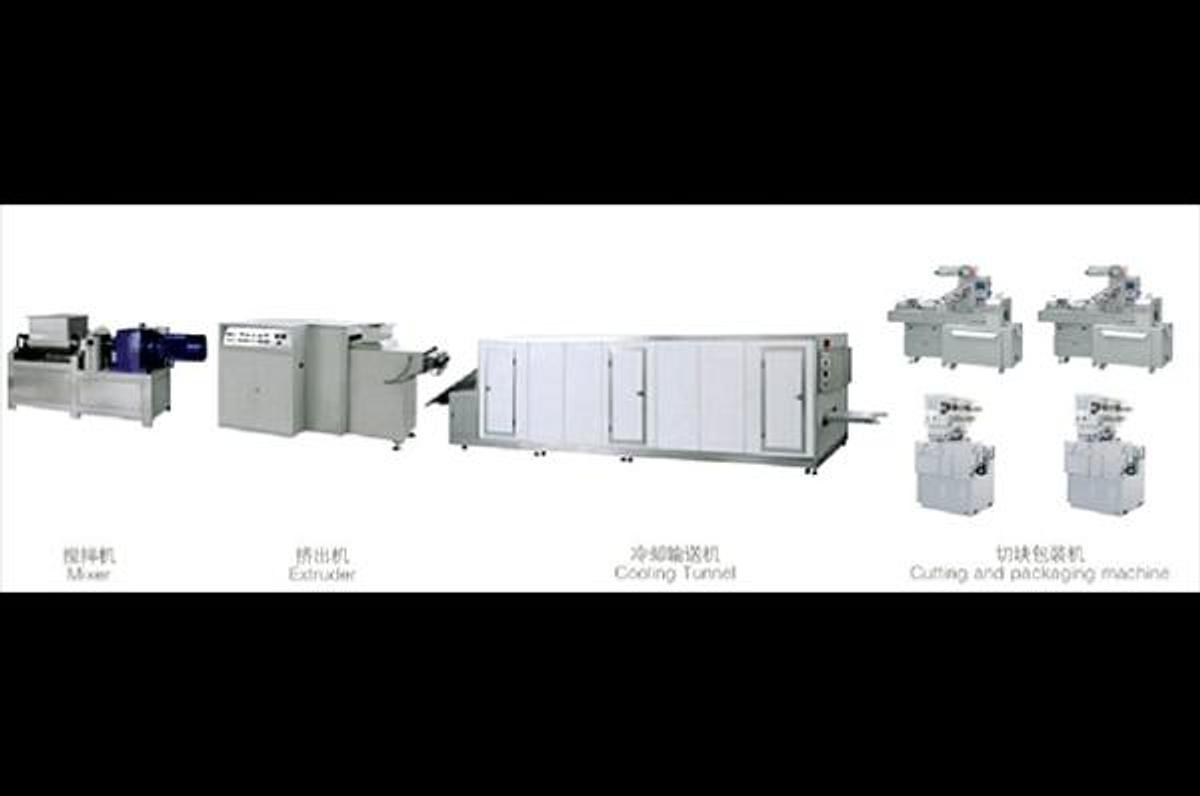

Mixer → Extruder → Six-Line Planish Machine → Gumball Forming Machine → Cooling Tunnel → Kibble → Gum Oven → Automatic Cutting, Folding & Packaging → Classification → Polishing

Main Production Line Specifications

• Output Capacity: 500–600 kg/h
• Total Installed Power: 125 kW
• Voltage: 380 V
• Overall Dimensions: 22,000 × 1800 × 1750 mm
• Candy Shape Range: Length 150–320 mm / Width 1.5–10 mm
• Total Machine Weight: 11,000 kg

Individual Equipment Specifications

1. Mixer

• Power: 20 kW
• Dimensions: 2300 × 890 × 1400 mm
• Output: 4 tons per 8 hours
• Weight: 1500 kg

2. Extruder

• Power: 20 kW
• Dimensions: 2500 × 1180 × 1550 mm
• Weight: 2200 kg

3. Six-Line Planish Machine

• Power: 6.8 kW
• Dimensions: 6500 × 730 × 1650 mm
• Weight: 2000 kg

4. Gumball Forming Machine

• Power: 2.2 kW
• Dimensions: 1800 × 730 × 1650 mm
• Weight: 800 kg

5. Cooling Tunnel

• Power: 18 kW
• Dimensions: 12,500 × 1850 × 1800 mm
• Weight: 2500 kg

6. Kibble

• Power: 17 kW
• Dimensions: 3000 × 1500 × 2200 mm
• Weight: 400 kg

7. Gum Oven

• Power: 36 kW
• Dimensions: 2400 × 720 × 1600 mm
• Weight: 750 kg

8. Automatic Classifier Machine

• Power: 3.0 kW
• Dimensions: 2100 × 850 × 1500 mm
• Weight: 600 kg

9. Polishing Pan

• Power: 2.2 kW
• Dimensions: 1600 × 730 × 1450 mm
• Weight: 350 kg

Advantages

• Fully automated and synchronized operation across all stages
• Efficient production of high-quality two-color bubble gum
• Modular equipment—easy maintenance and operation
• Frequency-controlled components for adjustable speed and output
• Ideal for medium to large-scale confectionery manufacturers
