Gummy Candy Production Line HTL-T150/T300/T450/T600

HTL-T150/T300/T450/T600 Jelly Candy & Deposited Toffee Production Line

Product Description

The HTL-T series is a versatile, fully automatic candy production line designed for manufacturing gelatin- or pectin-based jelly candies, including complex 3D jelly candies, as well as deposited toffees by simply changing the molds. This advanced production system offers a flexible solution for modern candy manufacturers looking to diversify product lines while maintaining high productivity and precision.

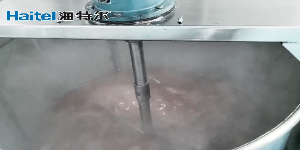

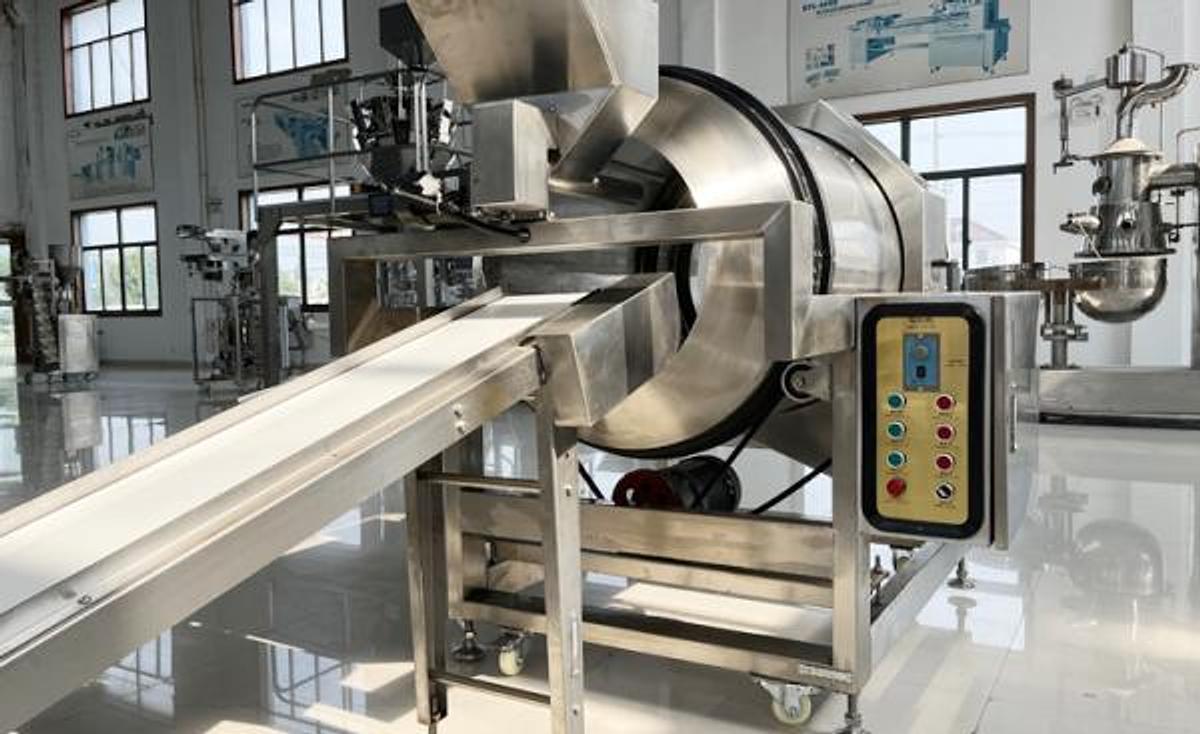

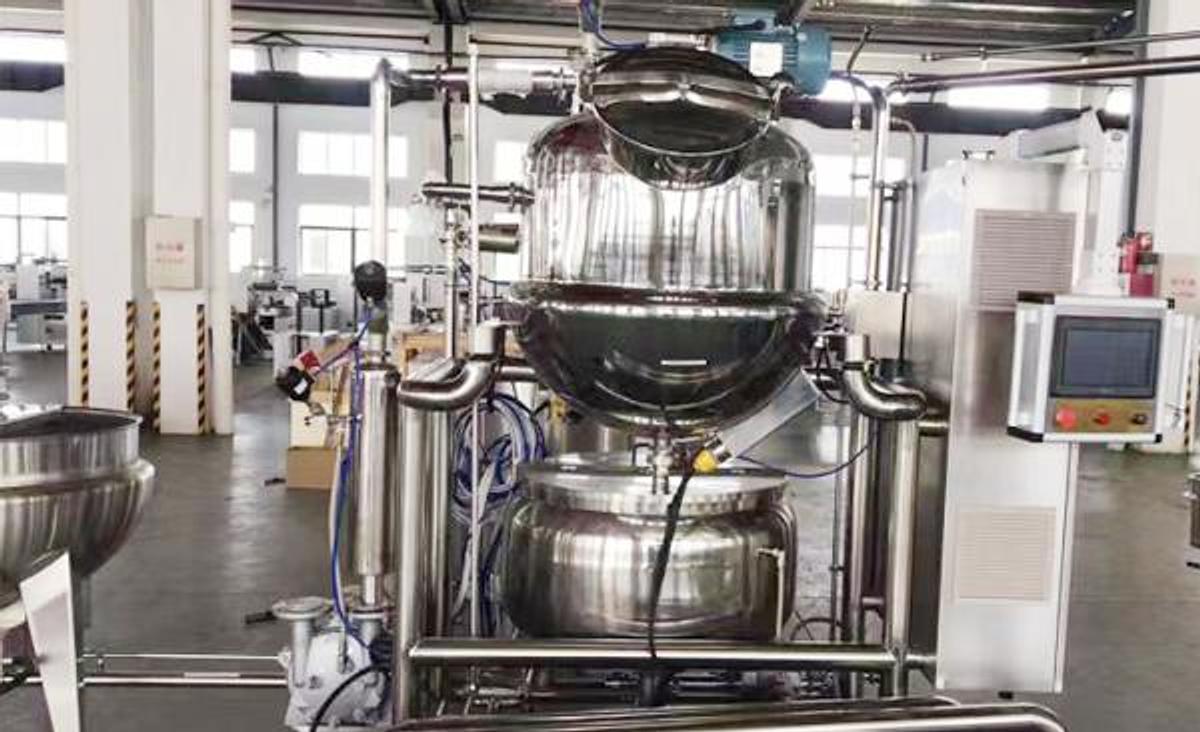

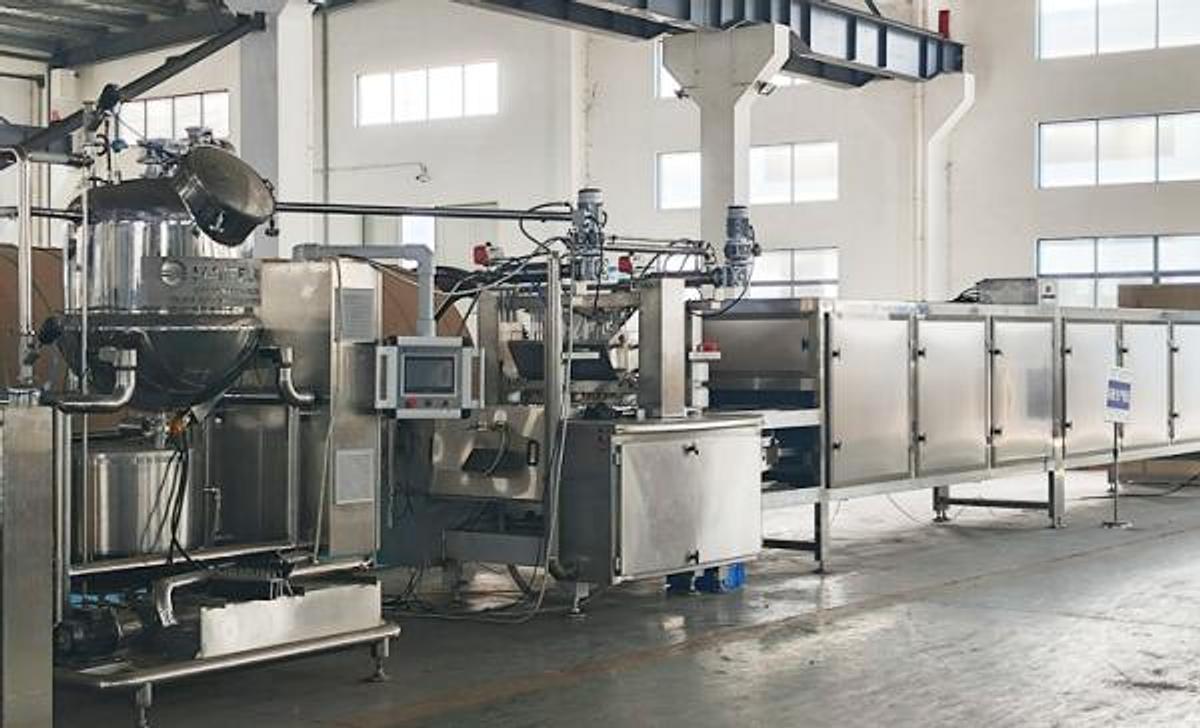

The complete line includes a batch jelly cooking system, FCA (flavor, color, acid) dosing and mixing system, multi-functional candy depositor, cooling tunnel, and optional sugar coating or oil coating machines. Each section is integrated seamlessly to ensure consistent candy quality, hygiene, and production efficiency.

Key Features

1. PLC or Computer Process Control – Provides intelligent automation and process reliability.
2. User-Friendly LED Touch Panel – Easy interface for real-time control and operation.
3. Flexible Capacity Options – Models available with outputs of 150 kg/h, 300 kg/h, 450 kg/h, and 600 kg/h.
4. Hygienic Design – All food-contact components are made of SUS304 stainless steel, meeting international sanitation standards.
5. Precise Flow Control – Optional mass flow systems regulated by frequency inverters.
6. Advanced Dosing & Pre-Mixing – For accurate addition of liquids (colors, flavors, acids) via in-line injection.
7. Optional Jam-Filled Candy Capability – Includes an extra jam paste injection system for fruit-filled products.
8. Stable Steam Pressure Control – Automated steam regulation system enhances cooking consistency and energy efficiency.
9. Custom Mold Options – Molds can be made based on customer-provided candy samples for unique product customization.

Application Scope

This production line is ideal for the manufacture of:

• Gelatin or pectin-based jelly candies
• 3D-shaped jelly products
• Deposited toffees
• Jam-filled or layered candies

Production Process Flow

Sugar Melting → Jelly Cooking → FCA Dosing & Mixing → Depositing → Cooling → Demoulding → Optional Coating → Packaging

Technical Specifications (Narrative Form)

The HTL-T series offers several models to accommodate different production needs:

• The HTL-T150 has a production capacity of 150 kg/h, consumes 8 kW of power, and requires 0.2 m³/min of compressed air. Its dimensions are 8500 × 1100 × 1800 mm, with a total machine weight of approximately 3000 kg.
• The HTL-T300 increases capacity to 300 kg/h, powered by 12 kW, and requires 0.25 m³/min of compressed air. The machine measures 10,000 × 1600 × 1800 mm and weighs 3500 kg.
• The HTL-T450 supports up to 450 kg/h, operates at 16 kW, and uses 0.4 m³/min of compressed air. Its footprint is 10,000 × 2200 × 1800 mm, and it weighs 4200 kg.
• The HTL-T600, the largest model, handles 600 kg/h, powered by 20 kW, requiring 0.45 m³/min of compressed air. The equipment spans 10,000 × 2600 × 1800 mm, with a weight of 5000 kg.
