Candy cane Production Line HTL-T410

HTL-T410 Canes Candy & Flat Lollipop Production Line

Product Description

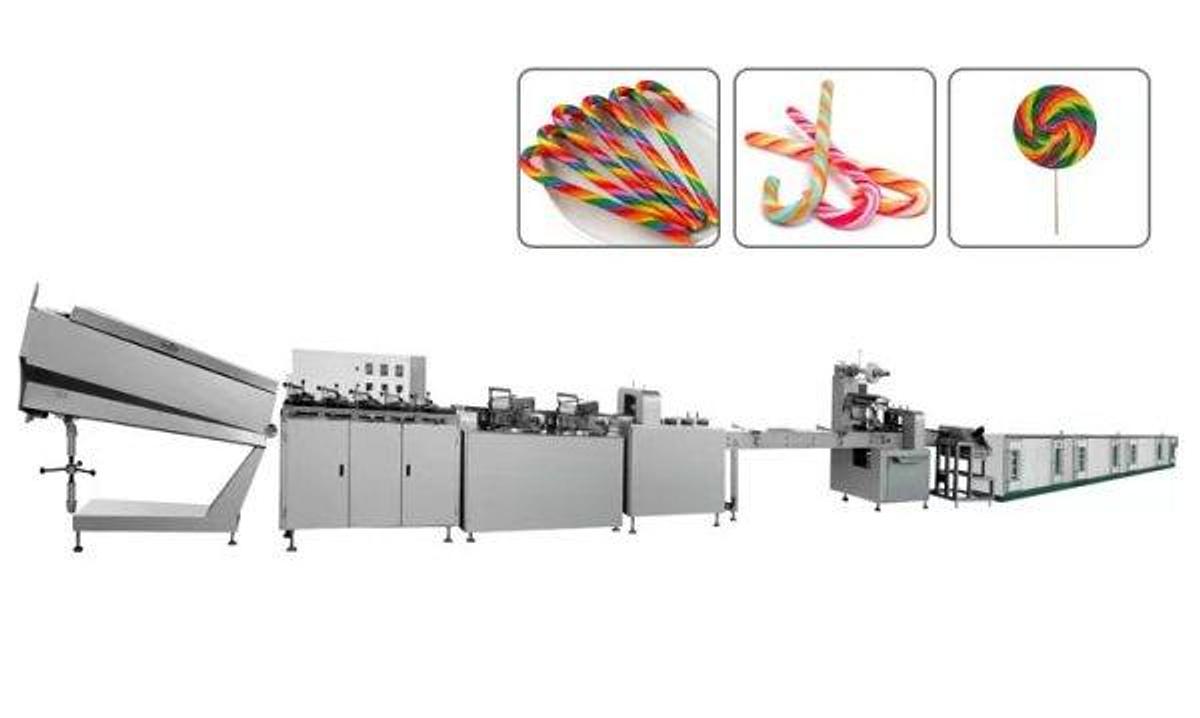

The HTL-T410 is a fully automatic and highly efficient production line designed for the manufacturing of canes candy and flat lollipops. This complete solution integrates multiple processing stages into a streamlined system, enabling consistent quality, high throughput, and minimal manual handling.

The production line features the following workflow:

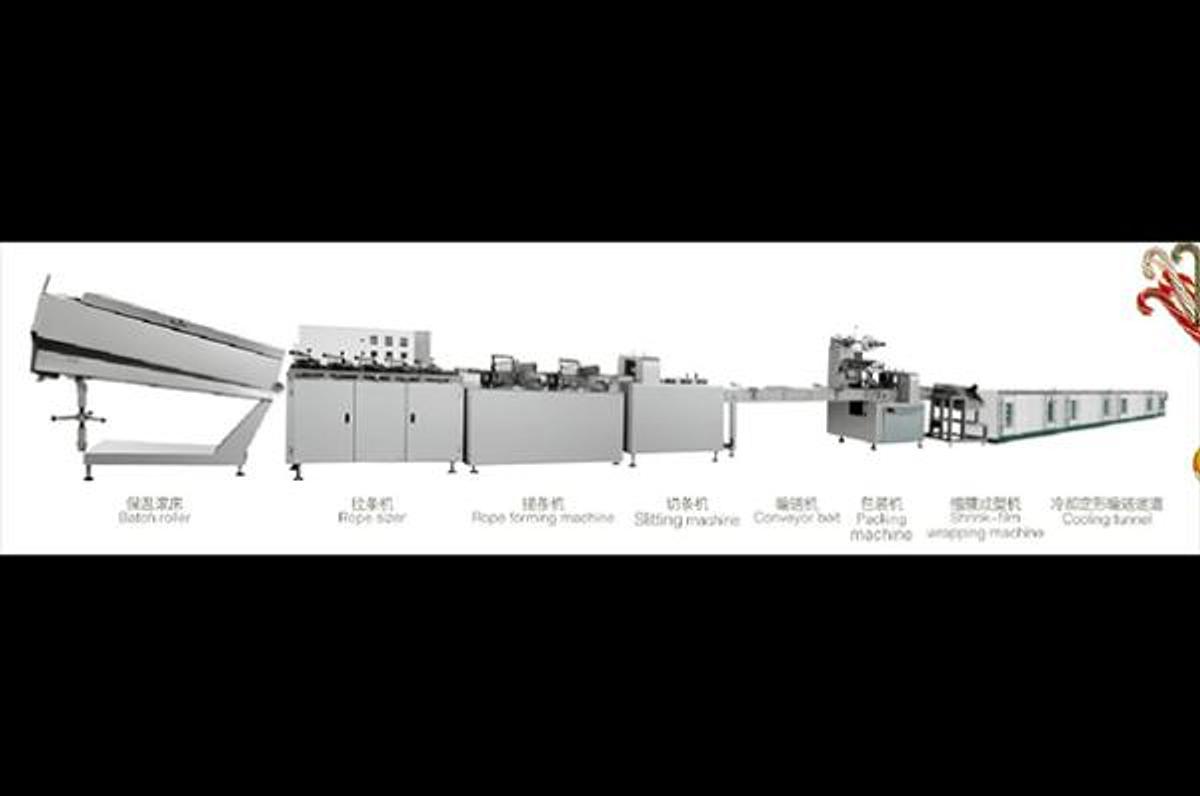

Thermal insulation roller bed → Strip drawing machine → Strip rolling machine → Strip cutting machine → Conveyor → Packaging machine → Shrink film forming machine → Cooling and shaping conveying tunnel

This integrated design ensures precision in candy shaping and wrapping, along with excellent temperature and material control throughout the process.

Technical Specifications

The HTL-T410 operates at a production capacity ranging from 100 to 400 kilograms per hour, making it ideal for medium to large-scale operations. The system is powered by a 35 kW electrical setup, delivering strong and stable performance across all modules.

With an overall footprint of 44,000 mm in length, 1000 mm in width, and 1500 mm in height, the machine is built for industrial environments requiring both high output and space efficiency.
