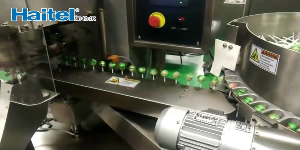

Ball Lollipop Wrapping Machine HTL-200

HTL-200 Spherical Candy Bar Packaging Machine

Main Performance & Structural Features

• Precision Color Code Tracking System:
• The trademark correction system utilizes advanced microcomputer control to ensure accurate and reliable color mark tracking for precise packaging alignment.
• Integrated Packaging Operations:
• The actions of paper feeding, wrapping, heat sealing, and twisting (kinking) are fully synchronized, resulting in lollipops with a clean, attractive appearance and excellent sealing integrity.
• Photoelectric Tracking & Material Efficiency:
• Equipped with a photoelectric detection system, the machine can automatically stop paper feeding when no candy is detected during startup, thereby preventing material waste. The system allows for continuous operation even when the packaging paper becomes curled or misaligned.
• Adaptive Paper Feeding System:
• A high-performance stepper motor dynamically adjusts the paper feed rate based on the machine’s real-time running speed, optimizing efficiency and minimizing errors.
• High-Quality Electrical Components:
• Incorporates premium imported components including frequency converters, PLC controllers, rotary encoders, photoelectric sensors, and a user-friendly touch screen interface. The machine is designed with a human-centric focus, offering simple operation and easy maintenance.

Scope of Application

The HTL-200 is specifically designed for the automated packaging of spherical candy bars. It is ideal for use in small, medium, and large-scale confectionery production facilities.

Technical Specifications

ParameterSpecificationApplicable Candy SizeDiameter: φ22 mm (min) – φ30 mm (max)Max Packaging Film Size125 × 125 mmProduction CapacityUp to 2000 kg per shift (φ25 mm candy)Total Power Consumption2.2 kWMachine Dimensions (L × W × H)2500 × 900 × 1500 mmNet Weight[Weight value missing — please provide]
