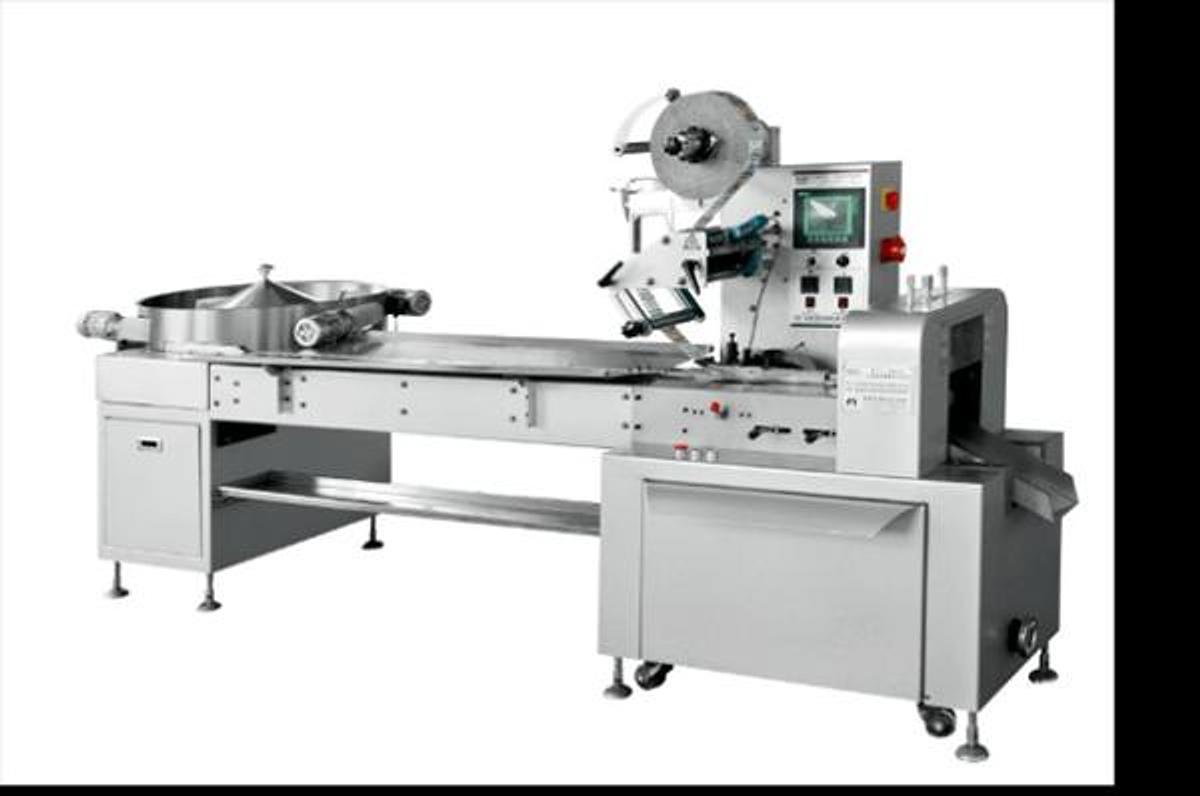

Automatic High Speed Candy Pillow Packaging Machine HTL-A800

HTL-A800 High-Speed Pillow Packaging Machine

Main Performance & Structural Features

• Intelligent Microcomputer Control:
• The machine integrates a fully automated microcomputer control system, offering a large touch-screen human-machine interface for intuitive operation and rapid parameter configuration.
• Automatic Feed Adjustment:
• Equipped with an automatic pond regulation system that significantly enhances production efficiency by optimizing material handling during packaging.
• Precision Servo Motor Technology:
• The advanced servo motor provides continuous compensation, allowing for precise, single-step bag length setting. This not only reduces film waste and operating time but also ensures clean, professional-grade sealing and an attractive packaging finish.

Application Scope

The HTL-A800 is specifically engineered for high-speed pillow-type packaging of various solid confectionery items. It is suitable for:

• Square candies
• Spherical and round sweets
• Cylindrical and oval confections
• Button-shaped items and other small solid blocks

Technical Specifications

ParameterSpecificationModelHTL-A800Packing Speed200–1000 packages per minutePackage SizeLength: 10–55 mmWidth: 10–30 mmHeight: 4–25 mmMaximum Film Width≤180 mmMachine Dimensions (L×W×H)3200 × 1200 × 1500 mmOperating Voltage380V / 50HzTotal Power Consumption4.5 kWNet Weight900 kg
