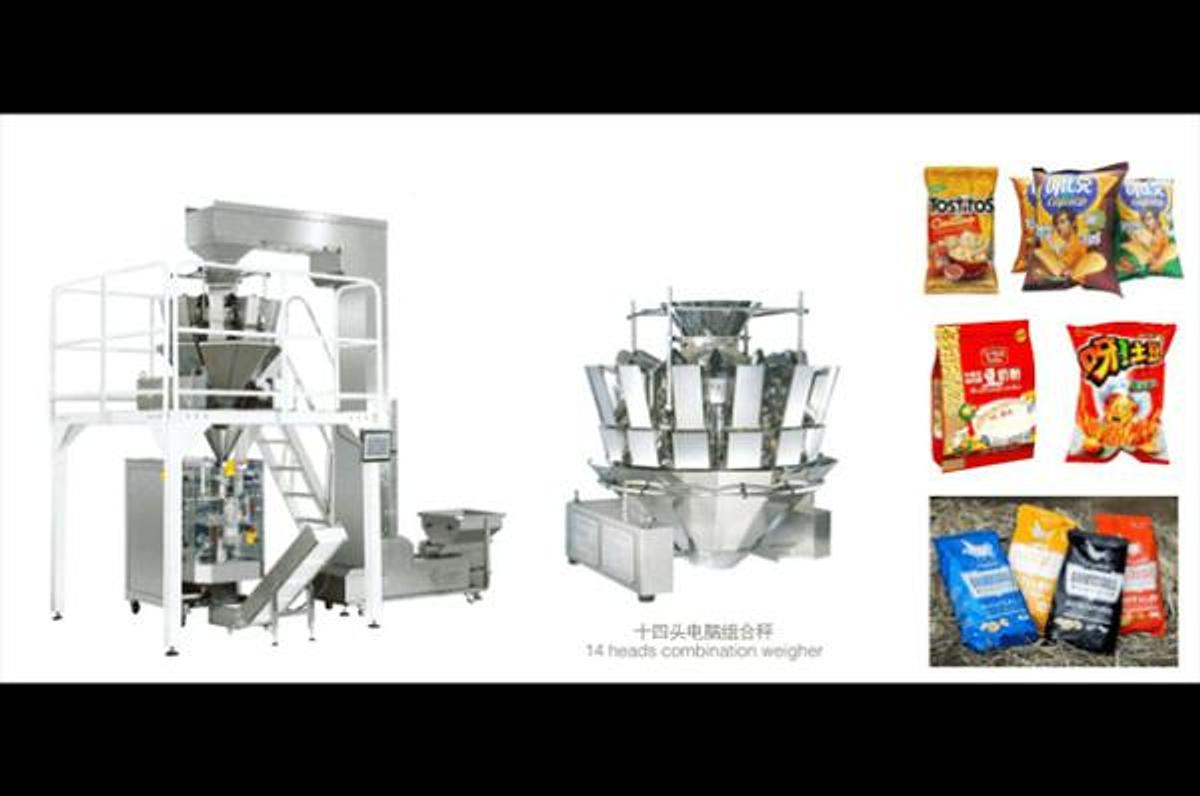

Vertical Automatic Packaging Machine HTL-V420/V520/V680

HTL-V Series Vertical Packaging Machines

Main Performance and Structural Features

The HTL-V Series vertical packaging machines are built for high-performance, automated packaging operations across various industries. These machines utilize advanced PLC control systems with a color touchscreen interface, enabling full automation of the packaging process—including bag forming, metering, filling, sealing, punching, and cutting—all in a single operation cycle.

Each machine operates with a dual-axis high-precision output system that ensures smooth, stable, and accurate production. The electrical and pneumatic control systems are independently managed, which enhances circuit stability, minimizes operational noise, and simplifies maintenance.

The use of a vacuum belt film pulling system ensures low resistance during operation, excellent bag shape, and minimal wear on the belts. A dual servo control system allows for precise film positioning and accurate bag sizing, while an external film-loading mechanism greatly simplifies film changes.

Operators can easily adjust bag alignment directly from the touchscreen panel, making real-time corrections user-friendly and fast. The machine's fully enclosed structure effectively prevents dust ingress, making it particularly suitable for food-grade environments. Additionally, it uses an electronic weighing system for refined weight control and reduced production waste.

Scope of Application

The HTL-V Series is suitable for packaging a wide range of granular, flake, and strip-shaped products. These include sugar granules, potato chips, shrimp chips, jelly cubes, peanuts, and similar snack or ingredient products. Its versatility makes it a strong fit for the food industry and other sectors requiring reliable, high-quality vertical packaging.

Model Descriptions

HTL-V420

This model is ideal for standard-size packaging requirements. It handles bag lengths ranging from 80 to 300 millimeters and bag widths from 50 to 200 millimeters. It supports roll film up to 420 millimeters wide and is capable of packaging 5 to 60 bags per minute. The filling volume ranges between 150 to 1200 milliliters. It operates at an air pressure of 0.65 MPa and consumes 0.3 cubic meters of air per minute. Powered by 220V and 2.2 kW, the machine measures approximately 1320 × 950 × 1260 mm and weighs around 540 kilograms.

HTL-V520

This mid-range model supports larger bags with lengths between 80 and 400 millimeters and widths from 80 to 250 millimeters. It can handle roll films up to 520 millimeters wide and operates at a speed of 5 to 50 bags per minute. The machine supports a filling volume of up to 3000 milliliters. It runs at an air pressure of 0.65 MPa with an air consumption of 0.4 cubic meters per minute. It is powered by 220V and 4 kW, with dimensions of 1150 × 1795 × 1650 mm and a total weight of 600 kilograms.

HTL-V680

The HTL-V680 is designed for high-capacity operations requiring extra-large bag sizes. It can produce bags with lengths between 100 and 480 millimeters and widths ranging from 180 to 320 millimeters. Compatible with roll films up to 680 millimeters wide, the machine delivers a production rate of 5 to 50 bags per minute and supports up to 6000 milliliters in filling volume. It requires 0.65 MPa air pressure and consumes 0.4 cubic meters of air per minute. It runs on 220V and 5 kW of power, with physical dimensions of 1780 × 1350 × 1950 mm and a weight of 900 kilograms.
