Technical Specifications – Model HTL-1000-2

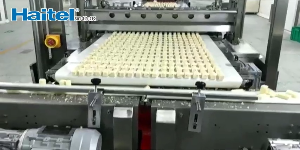

The HTL-1000-2 is a fully automated feeding and packaging production line designed for high-efficiency handling of products directly from the processing line. It integrates material conveying, sorting, feeding, and packaging into one seamless operation, eliminating manual discharge and improving productivity and accuracy.

This system is driven by a fully imported Siemens multi-servo control system, offering precise synchronization and adaptive response to varying product positioning. Irregularly distributed products are dynamically sorted and aligned using servo-based control before entering the packaging stage in a structured, efficient manner.

The system can operate independently or be fully integrated into an upstream production line and can be customized according to specific technical requirements.

Application Scope

Suitable for the dynamic sorting, conveying, and packaging of various solid products, including:

Mooncakes
Bread
Cakes
Biscuits
Soap
Other similarly sized items

Optional features include compatibility with an air-filling device and printer module for extended functionality.

Machine Specifications

Model: HTL-1000-2
Total Power: 10 kW
Voltage: 220V / 50Hz
Production Output: 200–600 pieces per minute
Dimensions (L × W × H): 8520 × 2200 × 1400 mm
Total Weight: 2000 kg
Remark: Can be equipped with air-filling and printing devices based on user requirements

Specifications

Manufacturer	GLOBAL TECHNICAL SOLUTIONS
Model	HTL-1000-2
Year	2025
Condition	New
Stock Number	.
