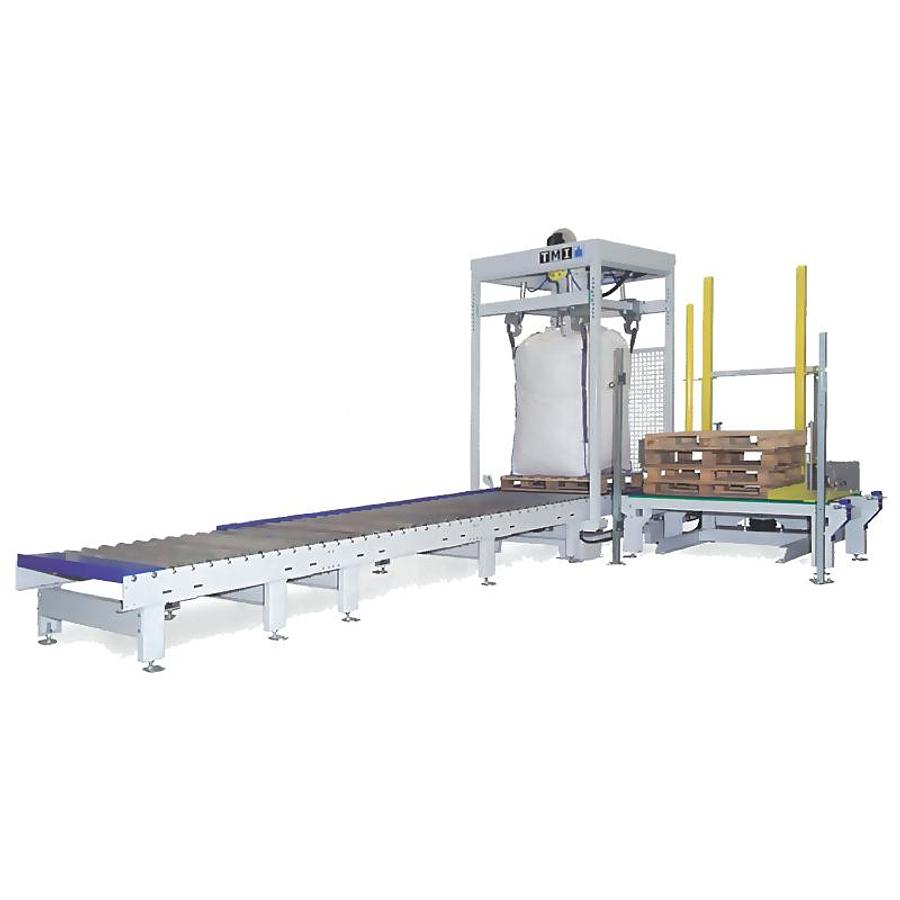

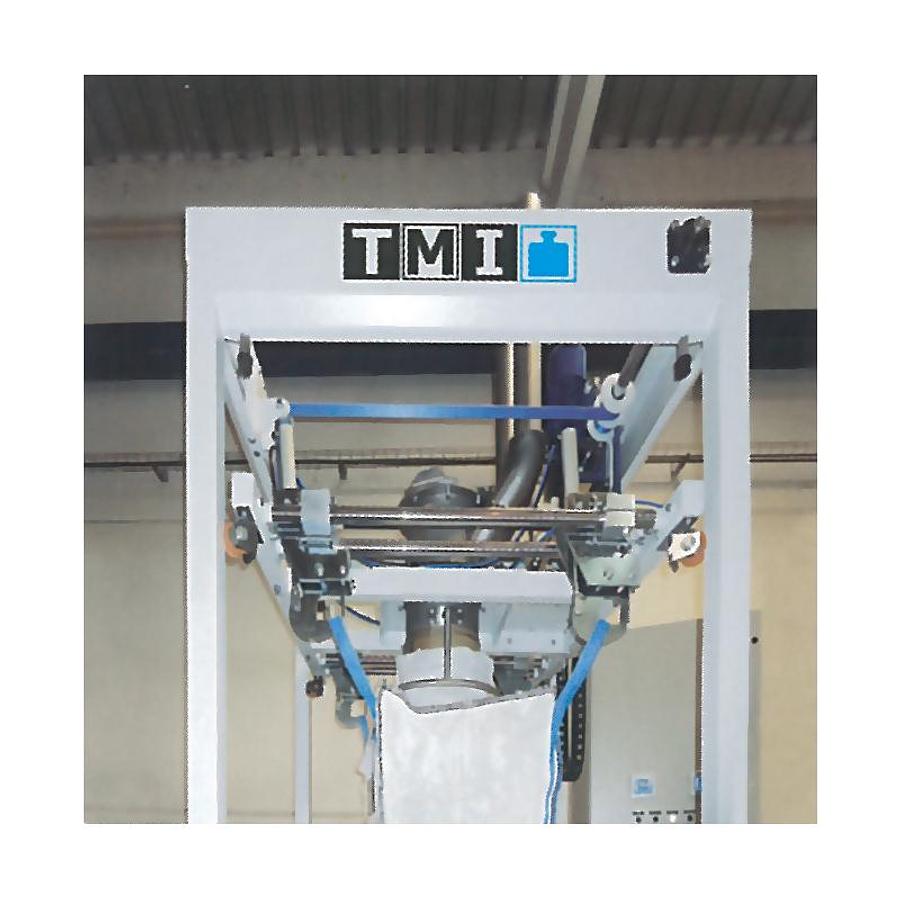

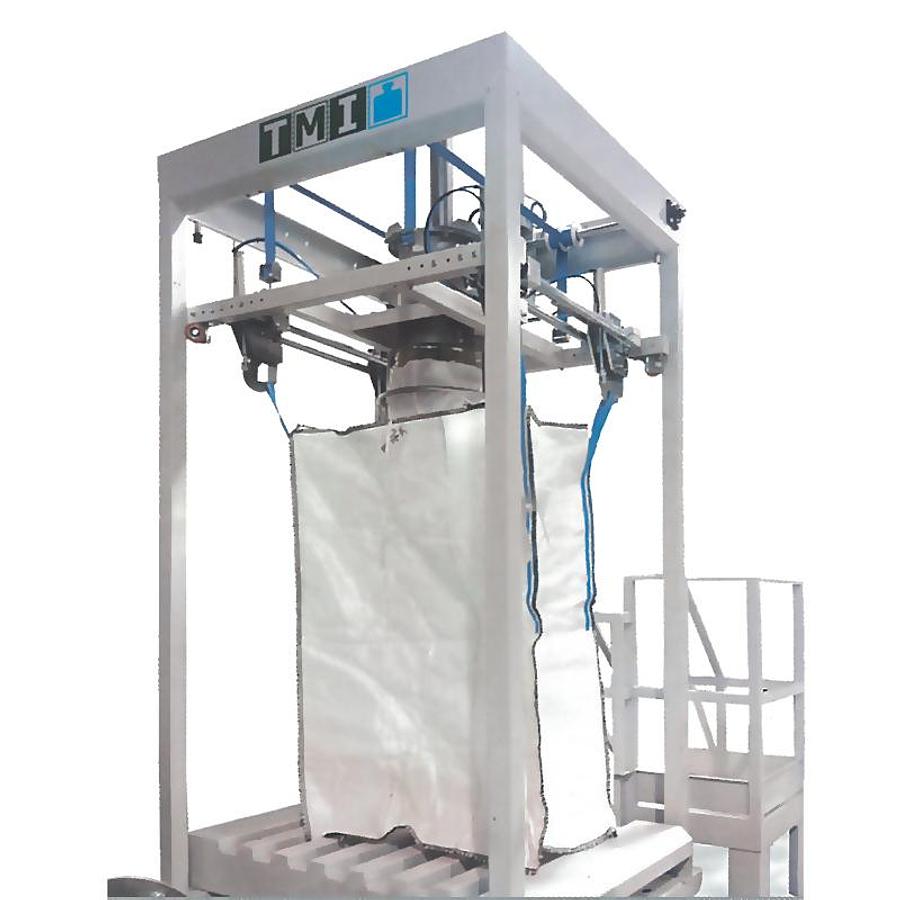

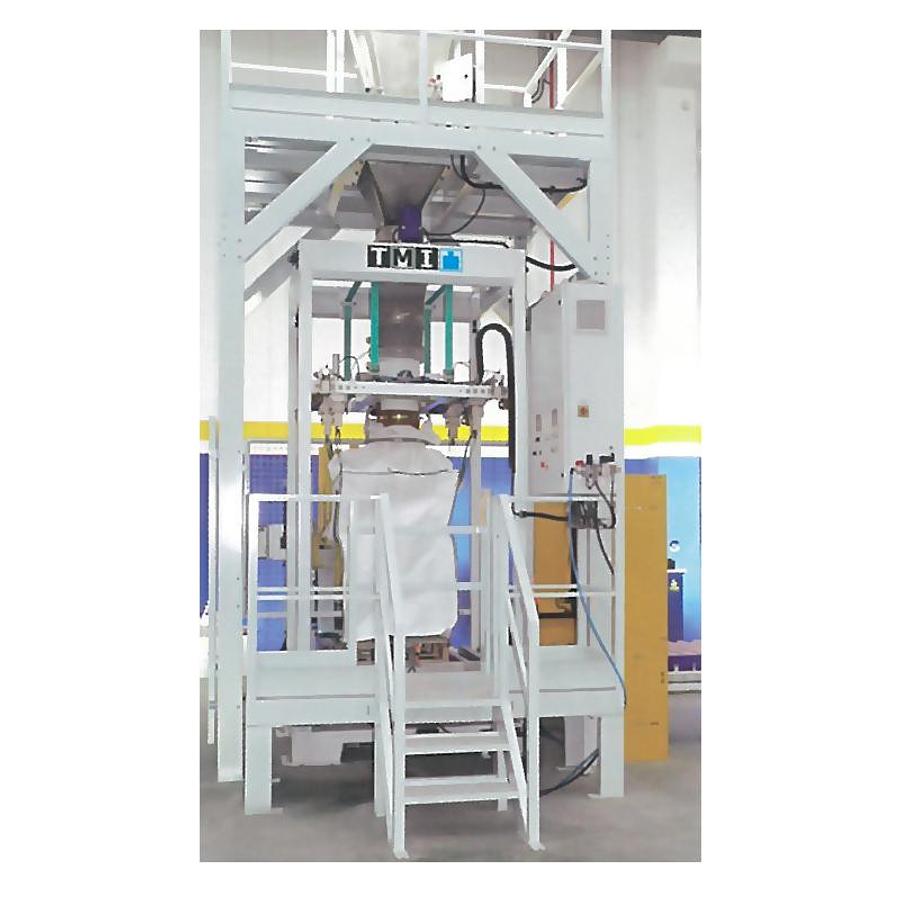

Detailed product information Big-bag filler with weighing system

Technical characteristics:

Big-bag support frame. Telescopic, height-adjustable.

Manual bag tying machine.

Mobile rocker, (grip on side 1,400 mm) safety bag holder hooks.

Complete P-WI weighing system with 4 load cells located on the top of the structure.

Complete electrical control panel of:

Electronic weighing display.

Control for product introduction valve (not included in the supply).

“Filling presence” flashing.

Acoustic warning of “filling completed”.

Power supply: 208 Volt 60 Hz

Construction in painted carbon steel or AISI 304 stainless steel.

Maximum capacity signs

Floor fixing kit.

Construction in accordance with CE standards.

Options:

Guillotine or butterfly valve with manual or pneumatic control for partial passage and stopping of the product at entry.

Upper product storage hopper, level sensors, loading systems (tubes or belts) according to customer specifications.

Load capacity 2,000 kg

Dimensions in plan 1,400 x 1,400 mm

Loading mouth diameter 200 mm
