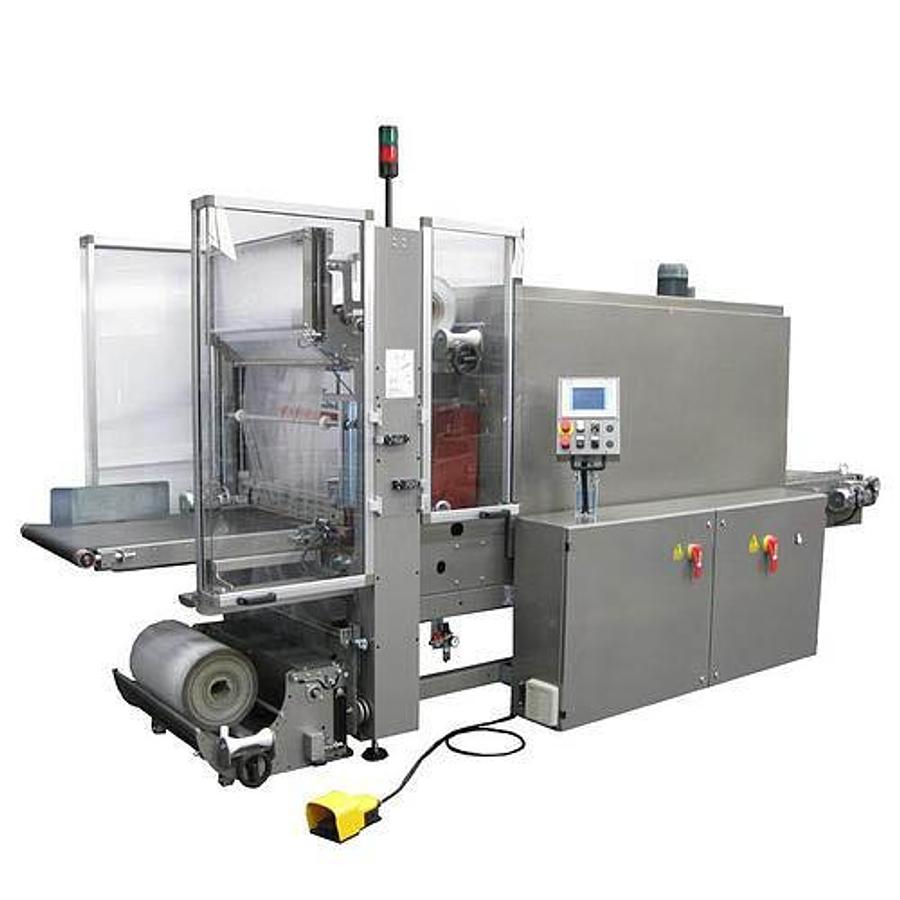

Linear Heat Shrink Wrapper – Champion 4/R-HS-Monoblock

CHAMPION 4/R-HS-MONOBLOCK shrink wrapping machine for LDPE shrink   film flat rolls, Max. W 680 mm ext. Diam. 350 mm;

Thickness from 35 to 100 mi;

  In-line motorized belt feed   1 ml.L. with product centering;

Hot bar sealing 700 mm pneumatic drive with safety system;

Thermo-regulator to control the temperature of the sealing bar (the machine   does not operate automatically until it reaches the appropriate temperature);

Safety sensor to stop the bar when products remain in the sealing area;

Maximum product height 380 mm;

Video-acoustic alarm for   final film finish and non-sealing;

Pneumatic pressing package after sealing;

Motorized feed outlet conveyor belt 380 mm controlled by inverter

  Automatic upper and lower coil unwinding system ;

  Removable lower coil carriage   for easy loading;

Heat-shrink tunnel   , 1,900 mm L; opening 600 x 400 mm H.

Mineral wool insulation and heating by 9x4000 W armoured resistors

Forced ventilation and air recirculation;

External adjustment of the internal air flow   within the tunnel chamber;

Temperature regulation by thermo-regulator with alarm (the unit operates automatically when the tunnel reaches the set temperature)

Wire mesh conveyor belt, driven by a gear motor;

Lower pre-shutdown (when the tunnel cools below 80 degrees the machine   stops completely automatically.);

Control panel built into the side of the machine frame;

Siemens PLC and OP7 display for parameter setting and troubleshooting are standard equipped;

The installed power of 42 kW;

Safety and security protection doors;
