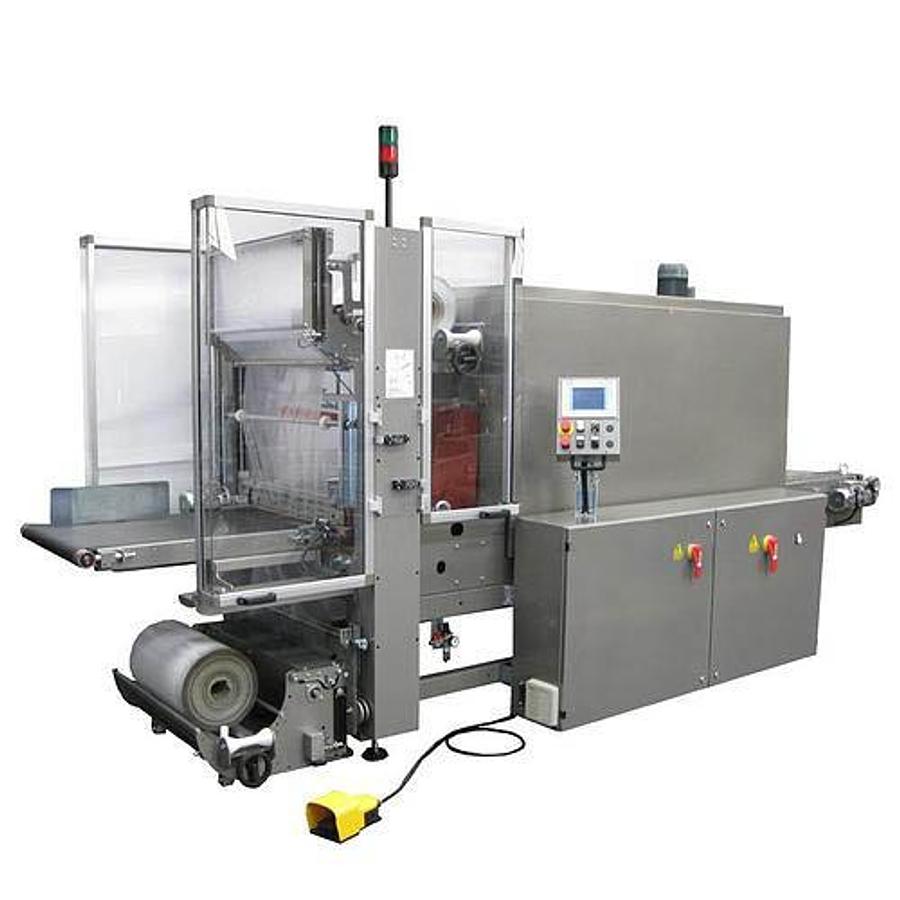

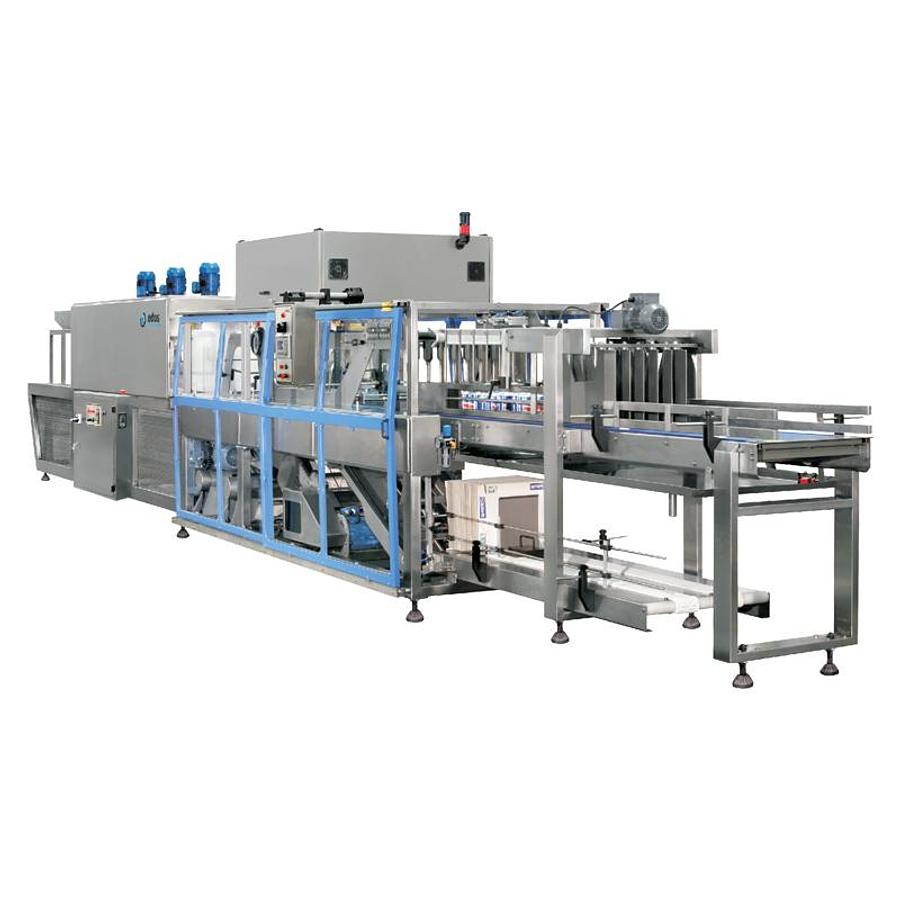

Linear Heat Shrink Wrapping Machine

R700/FVL – R700/FL – Automatic feed shrink wrapper with film and cardboard tray with edges.

Motorized Thermoplastics Belt Low friction material coefficient in-line feeding, driven by adjustable speed reducer motor, capable of receiving products from the manufacturing line and transmitting on specific lines;

Vibration device to facilitate insertion of the product into the lines;

Overfill control for automatic adjustment of the production department

Controlling the accumulation of full lanes   and fallen products;

The pneumatic closing interval.

Upper push rods with a preventative clutch, activated by an adjustable speed reduction motor to move the products, in the required configuration, after the sealing bar.

Security protection doors

Cardboard warehouse for up to 600 pieces, adjustable in size.

Acoustic alarm video for when cardboard trays run out

Vacuum pump for collecting cardboard trays

  Cardboard tray placement control

single chain feed belt on   cardboard trays (on the product)

Selection system between cardboard packaging or film only

Forming of the cardboard tray with folders and   Hot-Melt glue (Robatech Gluer) with wrapping system;

Tray drive system for the machine's wrapping feed belt

Tray edges min. 35 – Max. 100 mm;

Control panel with digital display capable of showing the machine's productivity, the system self-diagnoses and stores 10 different formats in memory;

Security protection doors
