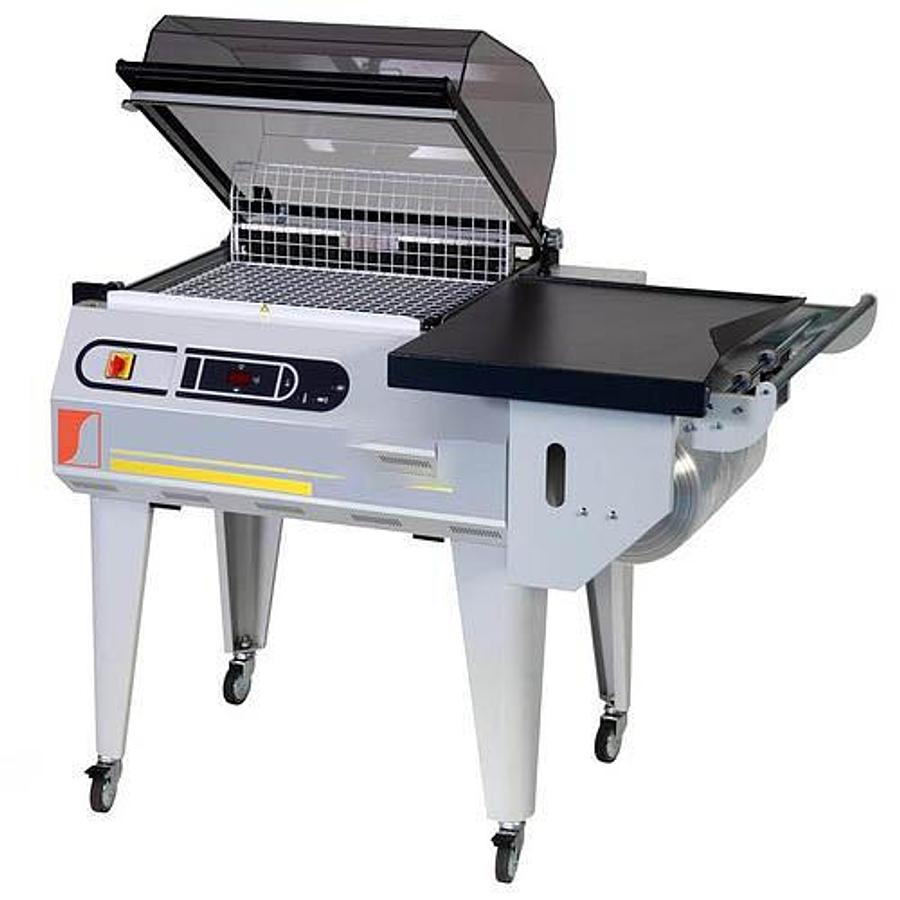

L-Shaped Bell Shrink Wrapper

GC55 / M - SEMI-AUTOMATIC HEAT SHRINK BELL SEALER

Able to use PVC – PP – Polyolefin –   Etc. Thickness 11/25 mi

Coil support roller system equipped with   two micro perforators

Film: Inner core 3” – Ext. Diam. 300 mm – Max. Width 550 mm

Sealing bar with dimensions 550 x L. 400 W. mm

Max. Product Height 260 mm

Adjustable sealing height

Teflon-coated welding bar

Magnet for holding the camera while sealing and shrinking

Digital control electronic card controls:

Sealing time and temperature settings

Adjustable Self-Release Timer Camera

Constant cooling system keeps the temperature of the bars constant so as not to make bars lose the shape and transparency of the film during unwinding.

Two work programs:

Sealing and heat shrinking

Sealed only

10 memorized   parameter settings (Menu) on specific products

Sealing height adjusted by handle

Standard equipped with wheels

GGC55/ME – SEMI-AUTOMATIC HEAT SHRINK SEALER MODEL GC55/M WITH AUTOMATIC DISCHARGE

Automatic product unloading via motorized conveyor

  Product output via 500 mm long free roller conveyor

GC80/ME – SEMI-AUTOMATIC HEAT SHRINK BELL SEALER MODEL GC55/M WITH AUTOMATIC DISCHARGE OF   LARGE  PRODUCTS

Film: Inner core 3” – Ext. Diam. 300 mm – Max. Width 700 mm

Sealing bar dimensions 800 L. x 600 W. mm

Max. Product Height 300 mm
