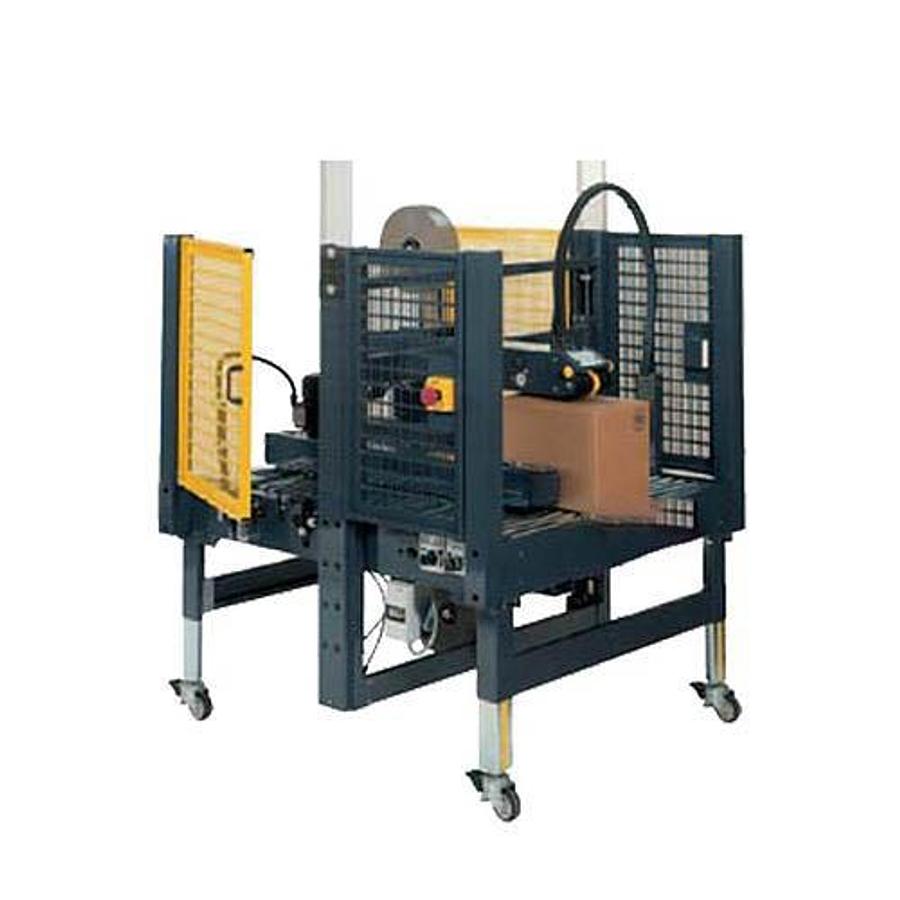

Semi-automatic cardboard box sealer - SM48

SM48

Semi-Automatic Box Sealer – Automatic adjustment to different box sizes

Lower side motorized drive belts (2 x 75 mm wide each)

  Driving speed band 20 mt. / Min. 2 Motors 0.18 HP

K12 Upper and Lower Tape Head   – 75 mm wide.

Safety guard doors connected to electro-pneumatic disconnect switches

SM48 duty cycle:

The boxes arrive at the machine's work table with the flaps closed. They touch the switch on the upper tape head frame, which moves upwards until it reaches the height of the box. The drive belts close and transport the box through the sealing machine.

SM481 duty cycle:

The boxes arrive at the machine's work table with the flaps closed. They touch the switch that activates the   upper head, raising the   frame to the height of the box lid. The drive belts close and transport the box through the sealing machine.

Adjustable Work Height 500 – 750 mm

Box dimensions

Min. 200 WH 120 L. 300 mm

Max. W. 800 H. 800 L. ===

SM481/1300

KING Box Sizes

Motorized side bands (2 x 50 mm wide) – 2 Motors 0.13 HP box dimensions

Min. 200 WH 300 L. 300 mm

Max. 800 W. 1,300 HL ===

Traditional accessories

Wheels

4 wheels with clutch

RN04 – 500 mm long / RN1 – 1 m long (others on request)

Infeed conveyor rollers – 800 mm wide

GTL800/3 (others on request)

Flexi Conveyor Feed Outlet Extendable from 1.5 to 4.5 m L. – 500/650 mm wide
