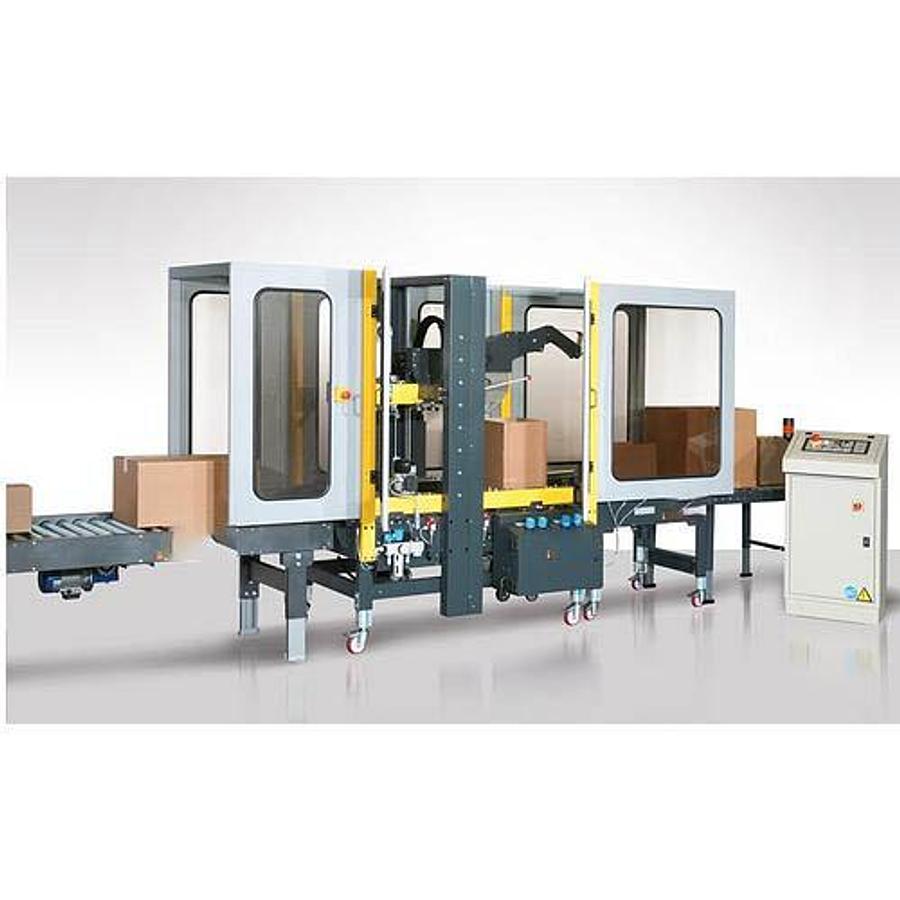

Automatic cardboard box sealer - SM44

SM44

Automatic Cardboard Box Sealers

Machines capable of adjusting to different box sizes and closing the top flaps of the boxes automatically (without an operator).

They are machines with safety protection doors, which if   opened, will automatically stop the pneumatic and electrical operation (CE compliant).

Duty cycle

AS24 centers   the boxes and allows one box at a time to   enter the SM44

The box,   after being   centered, is pushed into the machine.

The SM44 detects the box and allows the upper head to rise.

The drive belts close and drive the box through the SM44

The machine closes the top flaps

The tape head seals the top and bottom covers

Motorizations – Top Taping Head Frame – Pressure Rollers

Movements through   linear guides with self-lubricating bearings

Pneumatic control panel

It is the equipment that complies with EU/CE standards.

Valves and cylinders. Faster.

Electrical control panel

Omron PLC (others on request), including Self-diagnosis and intuitive graphics.

Programs that   allow you to choose from:

1 – Uniform size program

2 – Random size program

3 – Boxes to pass through the software

Technical data SM44-SM44/4HD + AS24/550

Box sizes

SM44HD

Min. length 200 max. 600

Width min. 150 max. 500

High min. 140 max. 500

SM44/4HD

Min. length 200 max. 600

Width min. 150 max. 500

High min. 100 max. 460

SM44HD K11-2 “(K12-3” on request) – SM44/4HD K11-2 “

Production capacity boxes per minute

SM44HD: 8/10 – SM44/4HD: 9/10

Transmission belts Speed: 30 meters / minute

Average air pressure consumption: approx. 180NL/minute

Power supply

208 V 50/60 Hz 3 Ph and 1Ph – 380/440 volts 50/60 Hz 3Ph

Installed Power

SM44HD-0.26 KW – AS24-0.26 KW

Components

Festo Pneumatics – Omron PLC – Coel Motors

Optional

End of roll or break alarm.

Wheels

Special colors
