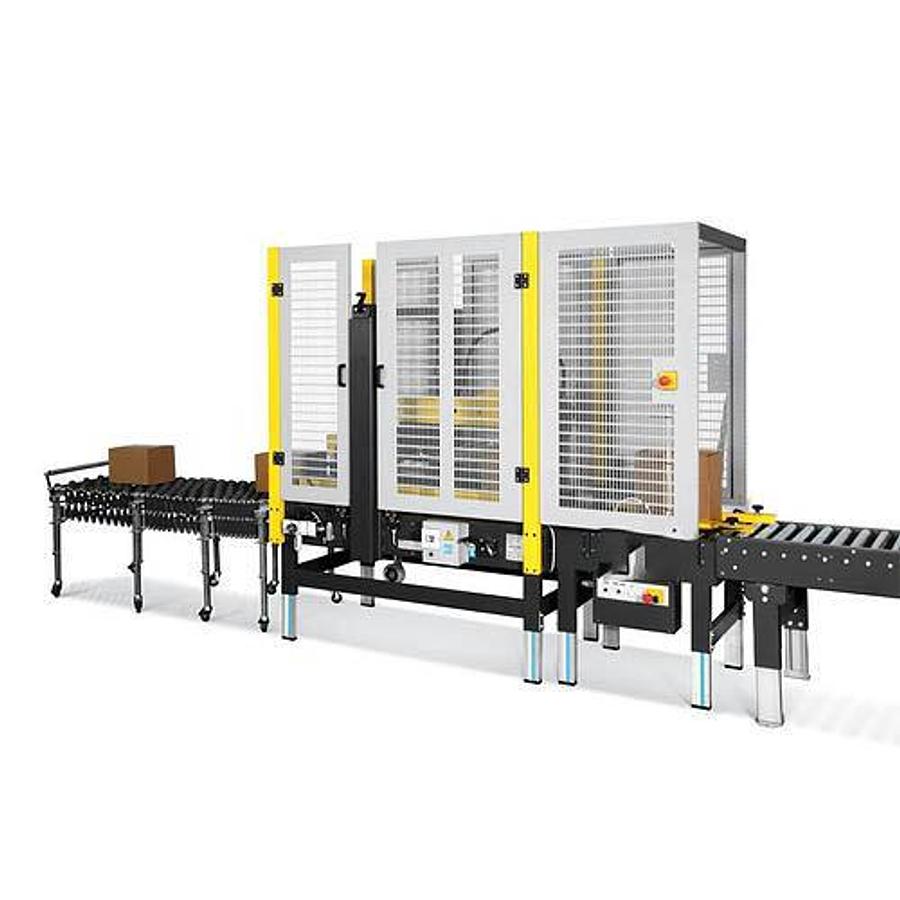

SM11

Automatic carton sealers with manual adjustment

Manual adjustment of different container sizes (Width – Height – Length)

Per handle in all three dimensions – time required 1 '

With cardboard on the four flaps

Motorized side drive belts (2 x 75 mm wide each – 100 mm SM116)

Motors 0.18 HP each

Transmission belts Speed 21 m / min

Side pressure rollers to keep the top flaps close together.

Adjustable working height 500-750 mm

2 K11 tape heads, 50 mm wide (K12, 75 mm wide, on request)

2 K12 tape heads, 75 mm for SM116

Safety side guards connected to electro-pneumatic disconnection switches

SM11 box dimensions

Min. 150 WH 120 L. 200 mm

Max WH 500 500 L. 600 mm

SM11 / 4 box dimensions

Min. 105 WH 60 L. 150 mm

Max. W. 500 H. 500 L. 600

SM11-I and SM11/4-I

They are stainless steel machines

SA11 and SA11/4

They are machines with a switch to control the movement of the upper head with a pneumatic piston instead of a handle.

The production capacity of SM11/SA11 and “/4” machine is 900 to 1,250 bph

SM11/6

Box dimensions

Min. 300 WH 180 L. 300 mm

Max W. 650 H. 700 L. 900 mm

SM116 production capacity 600 to 1,000 bph

Accessories and options

Brake Device Belt Sensor

Unsubscribe from the Tape Device

Wheels

Various feed and output feed idle rollers and motorized conveyors.
