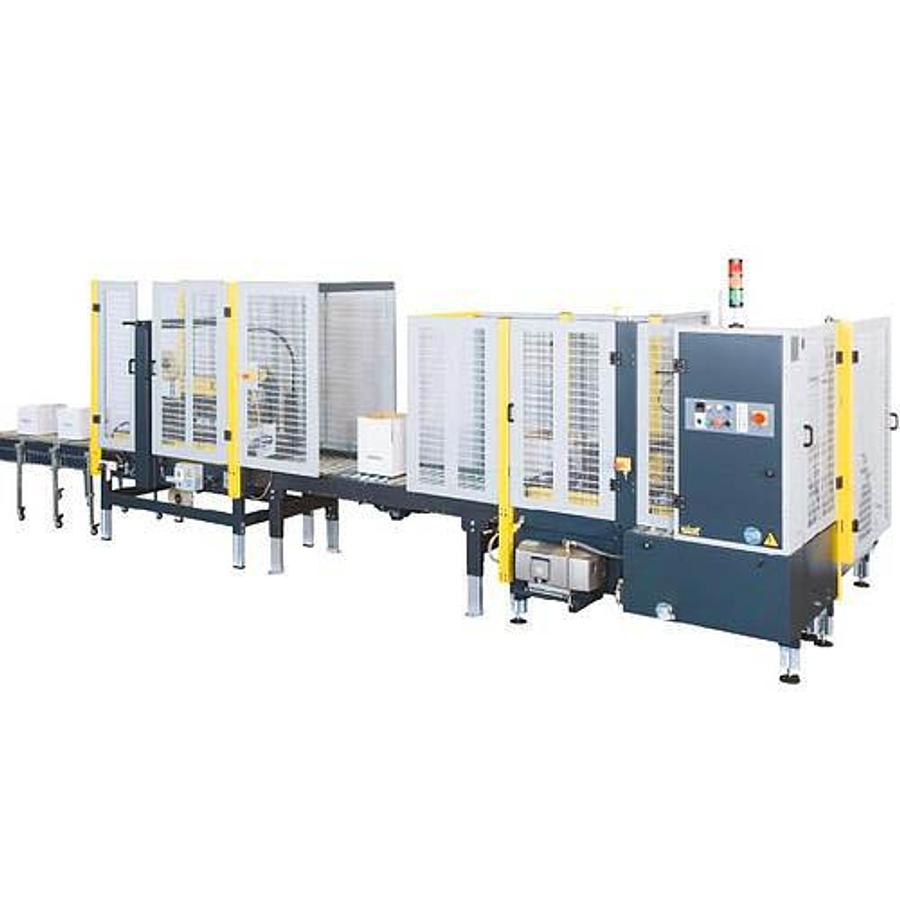

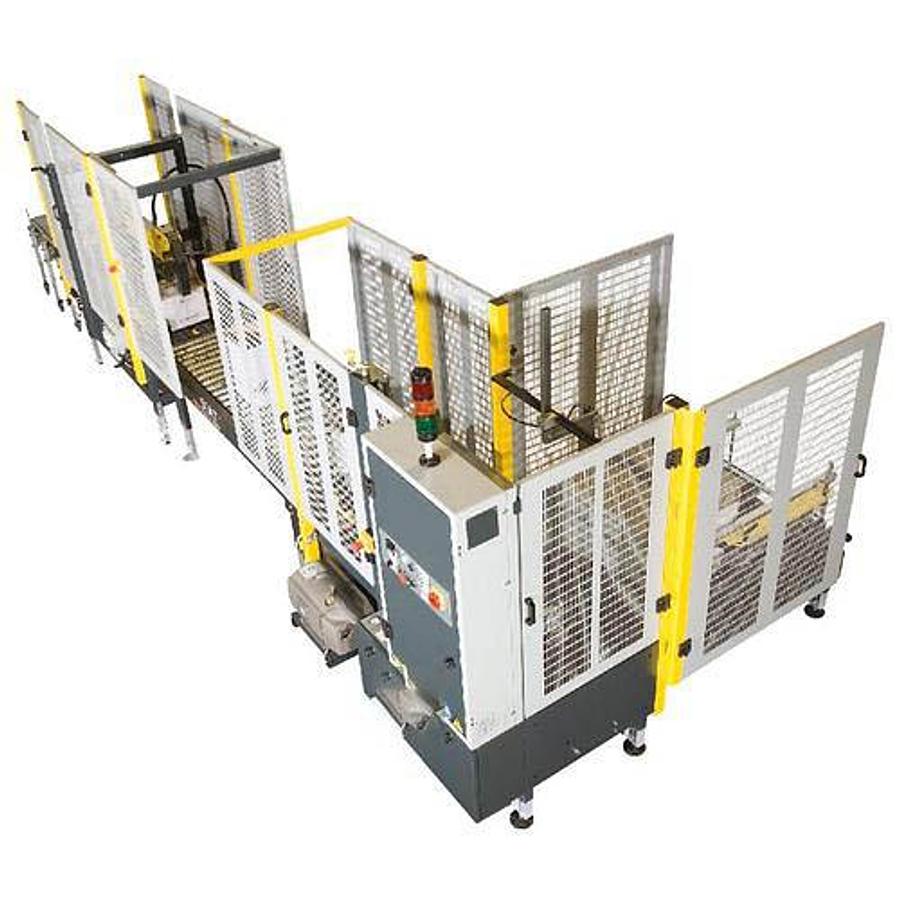

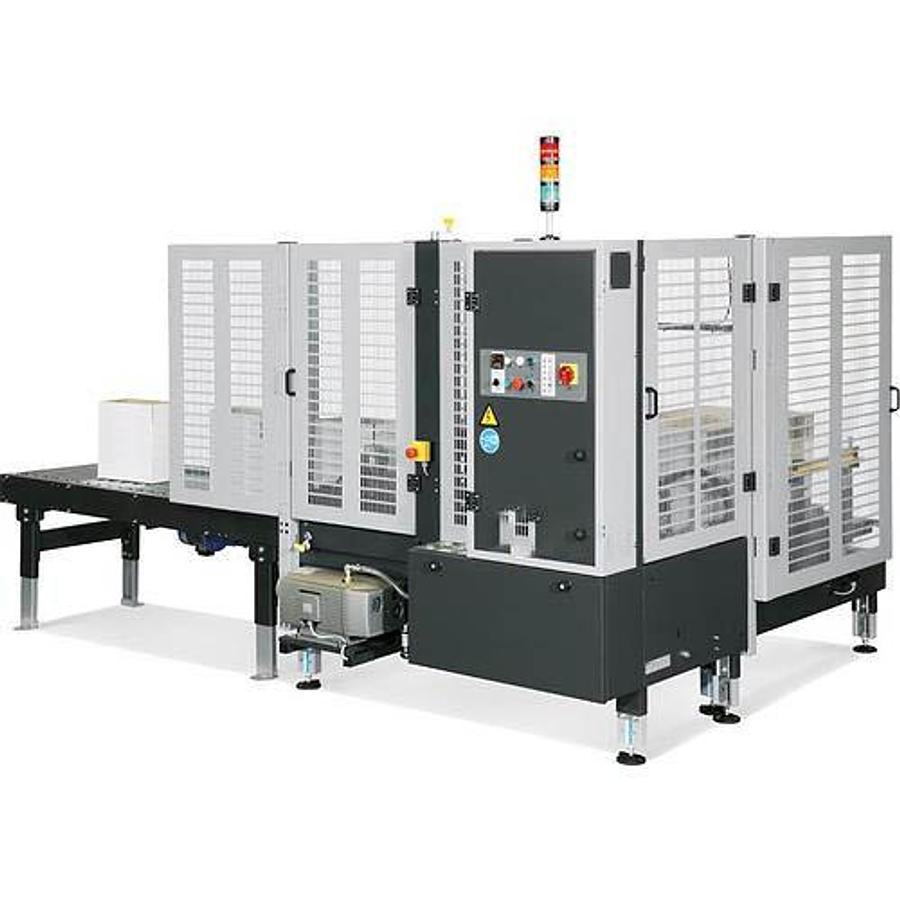

AUTOMATIC BOX ASSEMBLER

F144 and F344

Automatic corrugated cardboard box assembler

Sealing the bottom flaps with adhesive tape

Adjustable to different sizes of fin boxes (2')

Motorized storage system for 150 boxes

(from 300 boxes – ML – on request)

Box storage   available on the left (SX) or right (DX) side

2 compressed-air-driven carriers   (SMC + BOSH – Festo on request) with ventilation holes for collecting flattened boxes from the   box storage area, assembling them, and pushing them onto motorized drive belts (2 x 0.18 HP motors each), while   the bottom flaps are folded and sealed with K11 tape (K12 on request). BECKER vacuum pump (Ventury on request).

Machine controlled by PLC (Omron – Other brands on request) to synchronize the different movements of the machine and, finally, harmonize other machines to be connected (packing machine – transport line – carton sealer, etc.)

Safety guards with switches to disconnect both the pneumatic and   electrical parts if the door is opened.

Control panel equipped with:

• Cash counter, stopwatch to set productivity per minute

• Low level box storage alarm

• Tape breakage or end alarm

• Full line alarm after the machine

Maximum production capacity 10/12 boxes   per minute, according to the box sizes:

F144

Min. 150 WH 120 L. 200 mm

Max WH 350 450 L. 450 mm

Production capacity 12 lpm

F145

Min. 150 WH 120 L. 220 mm

Max WH 350 450 L. 560 mm

Production capacity 10 lpm
