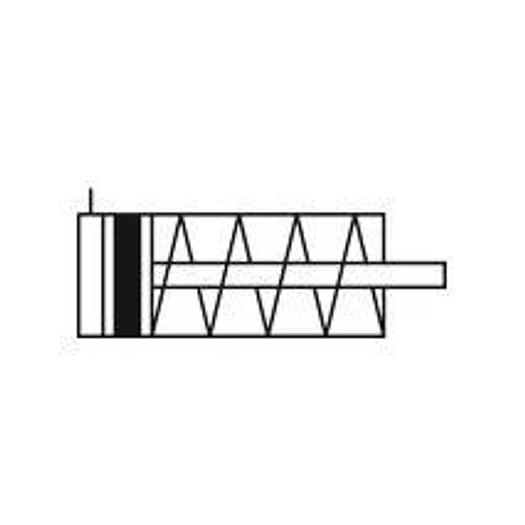

"12.EM.20005, Short-stroke cylinder 'ASQ', single-acting, piston Ø 20, stroke 5, M5x0.8"

"12.EM.20005, Short-stroke cylinder 'ASQ', single-acting, piston Ø 20, stroke 5, M5x0.8"

$83 (USD)

Location:Germany

Available quantity:99

or
Call +971 58 579 4328

Description

Short-stroke cylinder 'ASQ', single-acting, magnetic, internal thread, piston Ø 20, stroke 5, connection M5x0.8, working pressure 2-10 bar, temperature -20°C to 70°C. Specifically designed for applications in confined spaces. Version with magnetic piston. Short-stroke cylinders available in two different versions: Series 'ACQ', double-acting, Ø 12 – 100; Series 'ASQ', single-acting, Ø 12 - 63. Suitable for filtered and unlubricated or lubricated compressed air. When using lubricated compressed air, ensure continuous lubrication

Show All

Specifications

ManufacturerRiegler
Model12.EM.20005
Year2024
ConditionNew
Serial Number846115174
Stock Number.
Accesories437.502, Foot mounting 'LB' for short-stroke cylinder 'ACQ'/'ASQ', piston Ø 20
Accesories235.102, Sensor 'CS1' for short-stroke cylinder 'ACQ'/'ASQ', Hall sensor, 3-wire, NO (normally open), NPN
Accesories437.512, Flange mounting 'FA' for short-stroke cylinder 'ACQ'/'ASQ', piston Ø 20
Accesories235.105, Sensor 'CS1' for short-stroke cylinder 'ACQ'/'ASQ', Hall sensor, 3-wire
Accesories437.522, Swivel clevis mounting 'CB' for short-stroke cylinder 'ACQ'/'ASQ', piston Ø 20
Accesories235.103, Sensor 'CS1' for short-stroke cylinder 'ACQ'/'ASQ', Hall sensor, 3-wire, 3m
Accesories235.101, Sensor 'CS1' for short-stroke cylinder 'ACQ'/'ASQ', Reed sensor, 2-wire
Accesories235.104, Sensor 'CS1' for short-stroke cylinder 'ACQ'/'ASQ', Hall sensor, 3-wire, NO (normally open), PNP
