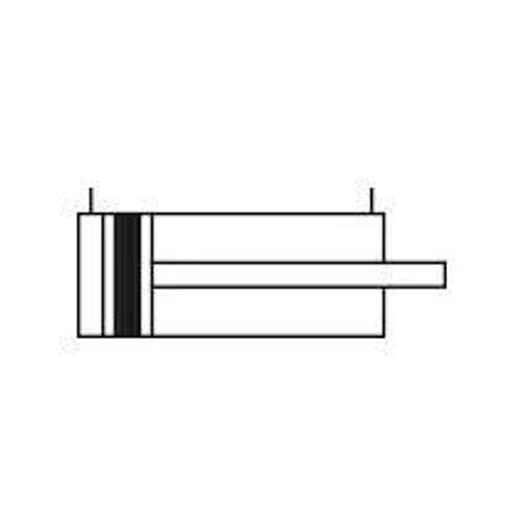

3.DM.25040, Short Stroke Cylinder, Double acting, Magnet, Piston Ø 25, Stroke 40, G 1/8
3.DM.25040, Short Stroke Cylinder, Double acting, Magnet, Piston Ø 25, Stroke 40, G 1/8
$99 (USD)
Location:Germany
Available quantity:99
or
Call +971 58 579 4328
Description
Short-stroke cylinder, double-acting, with magnet, piston diameter 25, stroke 40, G 1/8, working pressure max. 10 bar, temp. -10 °C to 80 °C. Especially for applications in confined spaces. Version with magnetic piston. Suitable for filtered compressed air, oiled (ensure continuity) or unoiled.
Specifications
| Manufacturer | Riegler |
| Model | 3.DM.25040 |
| Year | 2024 |
| Condition | New |
| Serial Number | 846105916 |
| Stock Number | . |
| Technical characteristics | Connection: G 1/8 Minimum response pressure: 0.6 bar Working pressure max.: 10 bar Damping: without adjustable damping Function: double-acting Piston rod thread: Internal thread on the piston rod Hub: 40 mm Piston: Acetal resin Piston seal: NBR (PU and FKM at extra charge) Piston diameter: 25 mm Piston rod: steel C45, hard chrome plated Piston rods IG: M5 Piston rod seal: NBR (PU and FKM at extra charge) Head: lacquered brass Magnet: with magnet Tube: aluminum alloy, anodized Temperature range max.: 80 °C Temperature range min.: -10 °C Country of origin: IT Customs tariff number: 84123100 |
| Accesories | 435.779-M, Reed magnet sensor for short-stroke cylinders, piston Ø 12 - 80 https://www.gts-worldwide.com/listings/6113333-435-779-m-reed-magnet-sensor-for-short-stroke-cylinders-piston-o-12-80 |
